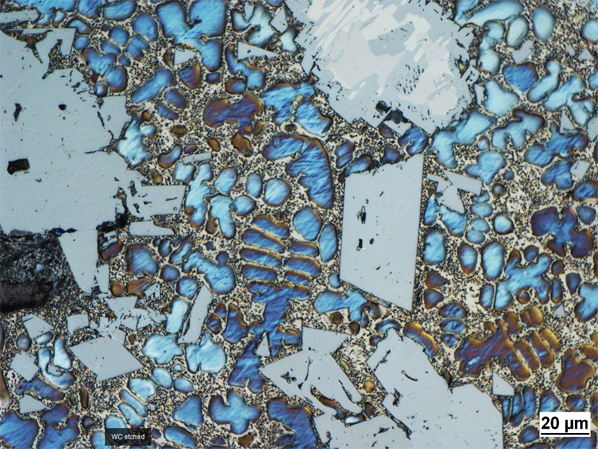

wc etched canadian centre for welding and joining Metallurgical Eye Candy

WC Etched – Unknown Artist, via Canadian Centre for Welding and Joining

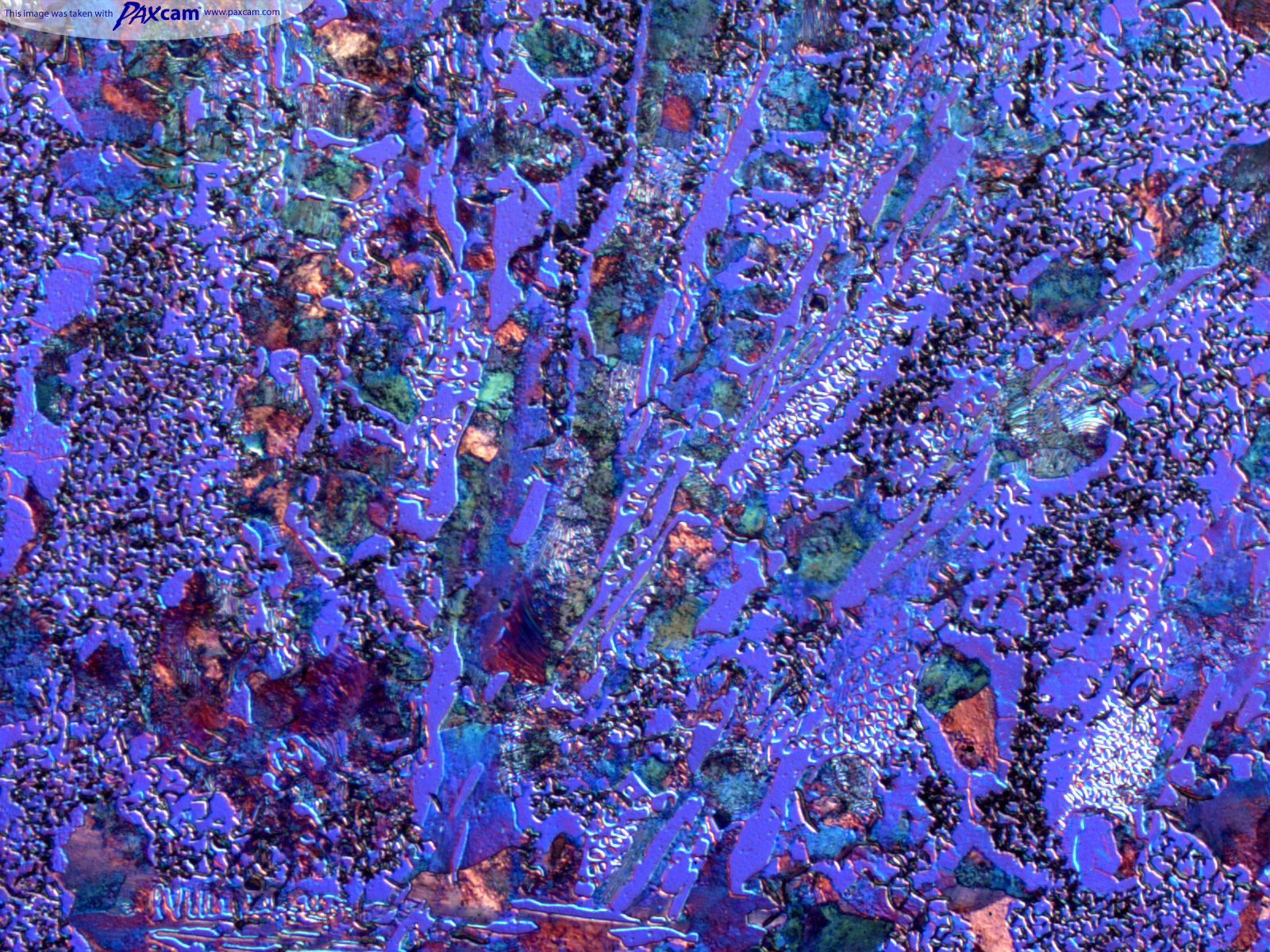

chilled cast iron paxcam Metallurgical Eye Candy

Chilled Cast Iron – Unknown Artist, via PAXCam

grey cast iron struers Metallurgical Eye Candy

Grey Cast Iron, 500x – Leila Bjerregaard, Struers A/S

skillbuilder metal 158x158 Metallurgical Eye CandyMetallography is a method of materials analysis used to characterize the microscopic structure of a metal sample. Generally, the process involves cutting a section from some object of interest, polishing its surface to high smoothness, and etching it with a chemical agent to highlight grain boundaries, inclusions, and other microstructural features. The sample is then imaged using one of a number of types of microscopy. The resulting pictures are often strikingly (if incidentally) beautiful. That’s OK by me, personally—incidental beauty is usually my favorite kind.

I have written here about metallography before. Back in 2009, I had a hard time finding nice high resolution metallographic images to share with you. Happily, there seems to be more of it available online, now, and I’ve picked out three academic and commercial image libraries, sampled above and linked below, for those interested in digging deeper. Some of the captioning is still less detailed than I like (many of PAXCam’s images, for instance, are simply labelled as “Metallurgy Image”), but beggars oughtn’t to be choosers. So I’ll simply leave it with this: Hey metallographers! More pretty pictures!  Please and thank you!

CCWJ Pictures — Metallography
PAXCam Image Library — Metallurgy Images
Struers — Materialographic Wallpapers
