High-Pressure Foam Rocket

Toy or not, this rocket really packs a punch.

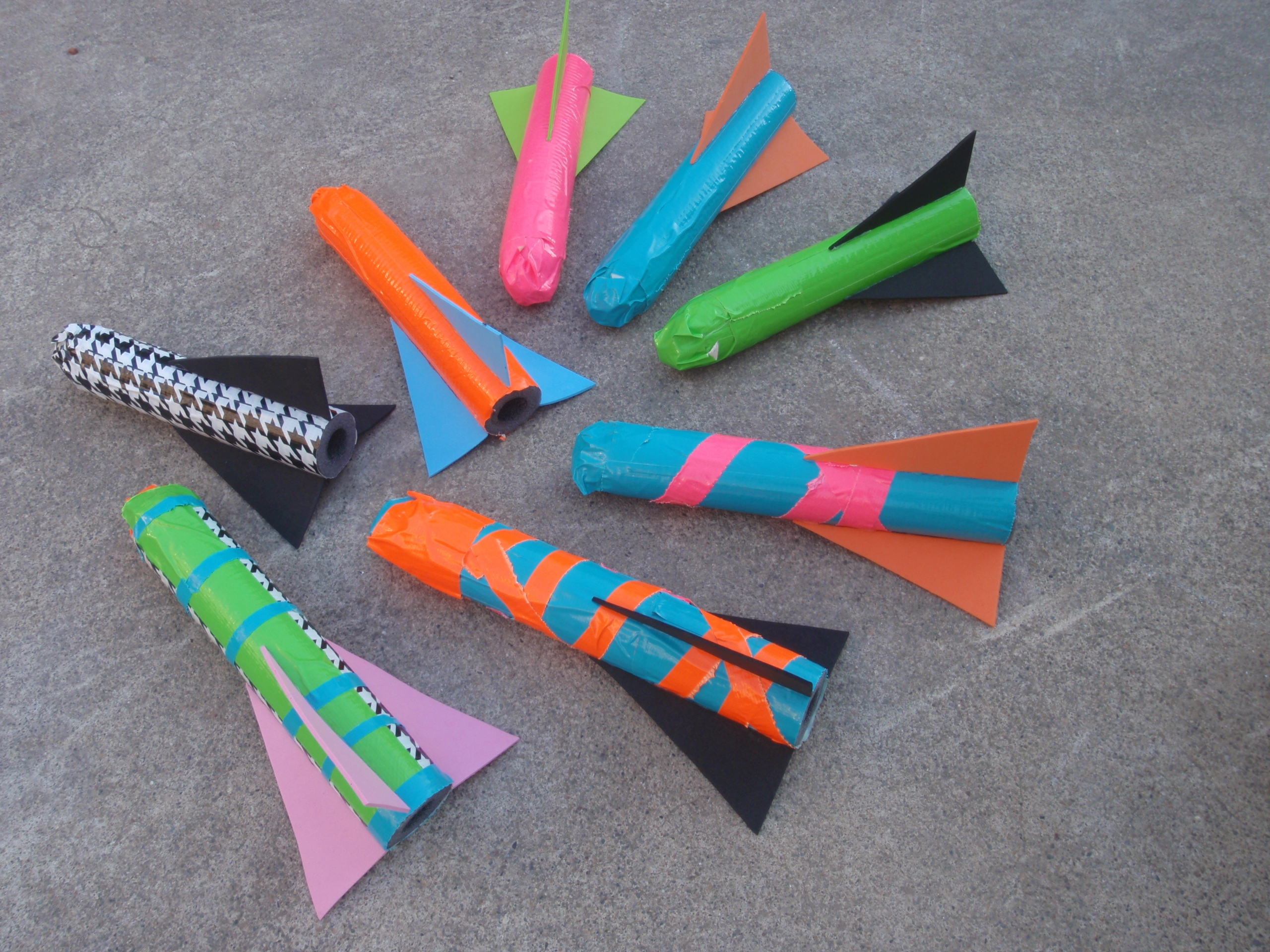

High-Pressure Foam Rocket

Calling a rocket that sprints over 100 feet into the air a “toy” might be a bit of a stretch. Toy or not, this rocket really packs a punch. Fly it using the Compressed Air Rocket launcher from MAKE Volume 15 (get the kit at makezine.com/go/launcherkit) or a stomp rocket launcher (makezine.com/go/stomplauncher).

Steps

Step #1: Cut the foam and cinch with a zip tie.

PrevNext
High-Pressure Foam RocketHigh-Pressure Foam RocketHigh-Pressure Foam RocketHigh-Pressure Foam Rocket

Cut a 9" section of foam pipe insulation. Wrap the zip tie 1/2" from one end and cinch it tight so no air will escape. Trim the excess foam above the cinched-off end.

Step #2: Apply duct tape to foam rocket body.

PrevNext
High-Pressure Foam RocketHigh-Pressure Foam RocketHigh-Pressure Foam RocketHigh-Pressure Foam Rocket

Criss-cross 2 pieces of duct tape over the cinched end. Now cover the entire foam section with duct tape spanning the length. Three overlapping pieces of tape should do the trick.

Step #3: Cut and attach foam fins.

PrevNext
High-Pressure Foam RocketHigh-Pressure Foam RocketHigh-Pressure Foam RocketHigh-Pressure Foam Rocket

Cut a 4"×1½" rectangle from the foam sheet, then cut it diagonally to make 2 fins. Repeat. Using generous amounts of hot glue, attach 3 of the fins, spaced evenly, onto the foam rocket body tube. If the glue doesn’t stick well to the rough duct tape, wrap 2 strips of clear packing tape over the duct tape around the bottom of the rocket to create a smooth surface for gluing the fins.

Step #4: Use it!

PrevNext
High-Pressure Foam Rocket

Pressurize the compressed air launcher for 45psi–65psi, and launch. (For a lower pressure/altitude launch, use a stomp launcher.) When the duct tape finally fails with a spectacular blowout, just apply more duct tape over the blown section and keep flying!

Conclusion

This project first appeared in MAKE Volume 29, page 123.

Rick Schertle

Rick Schertle

Rick teaches middle school in San Jose, CA. He’s a contributing writer for MAKE and leads after school making clubs with kids. He designed the compressed air rocket for MAKE 15 and the folding-wing glider in MAKE 31. With his wife and kids, Rick loves all things that fly. Rick is the co-founder of AirRocketWorks.com.
