LED Robot Ornament

Make a simple circuit robot Christmas ornament.

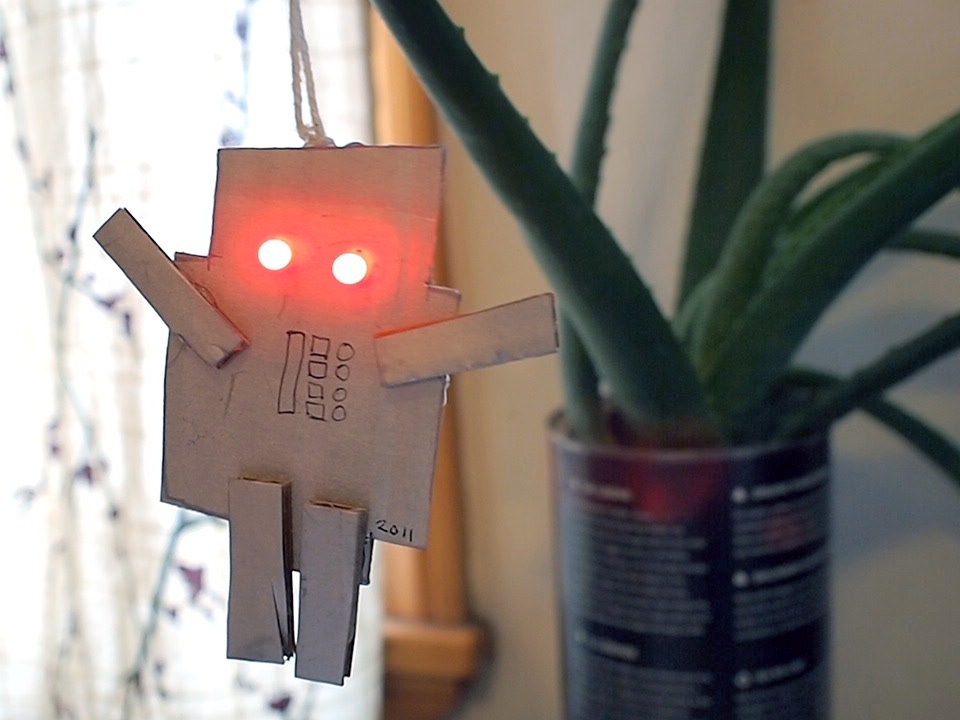

LED Robot Ornament

Crafting under pressure is irresistible. This year the Craftzine gals suggested an ornament swap– 12 days before Christmas. With a lot on our plates we all agreed to make time for crafting eight handmade ornaments each, and the deadline made it even more intense. Cheers to speed crafting!

Related

Steps

Step #1:

PrevNext
LED Robot OrnamentLED Robot OrnamentLED Robot OrnamentLED Robot Ornament
  • Spray paint some scrap cardboard — I chose silver.
  • Sketch out your robot designs, either in a notebook first or directly on the cardboard.

Step #2:

PrevNext
LED Robot OrnamentLED Robot OrnamentLED Robot Ornament
  • Cut out your robots' bodies.
  • Cut legs and arms from small strips of cardboard.

Step #3:

PrevNext
LED Robot Ornament
  • Glue on arms and legs.
  • Keep a bowl of ice water nearby when using a hot glue gun.

Step #4:

PrevNext
LED Robot OrnamentLED Robot OrnamentLED Robot OrnamentLED Robot Ornament
  • Pierce two holes for each LED with an awl.
  • Feed the LED legs through the holes, minding the polarity. The long (+) leads should both be facing the same way.

Step #5:

PrevNext
LED Robot OrnamentLED Robot OrnamentLED Robot Ornament
  • On the back, twist the two long leads (+) together, and twist the two short leads (-) together. This is called wiring the LEDs in parallel.
  • Look for the (-) symbol near one side of the battery holder. Stack the holder on top of the LED leads matching + to + and - to -.
  • The circuit is the same as my LED shoe clips project as well as my firefly embroidery project.

Step #6:

PrevNext
LED Robot OrnamentLED Robot OrnamentLED Robot OrnamentLED Robot Ornament
  • Use pliers to twist the LED leads around the battery holder legs, and insert a battery to confirm the circuit illuminates the robot's eyes.
  • Use hot glue to secure the battery holder while it's still on.

Step #7:

PrevNext
LED Robot OrnamentLED Robot OrnamentLED Robot OrnamentLED Robot Ornament
  • Slide a strip of paper between the battery and the holder to provide a pull-to-start tab.
  • Insert the battery in the holder, pinching the paper strip between.
  • Write "pull here" on the paper strip.

Step #8:

PrevNext
LED Robot OrnamentLED Robot OrnamentLED Robot OrnamentLED Robot Ornament
  • Draw buttons, dials, the current year, or any other decorations on your robot.
  • Don't forget to sign the back!
  • Glue on a loop of string for hanging.
  • Merry Xmas!
Becky Stern

Becky Stern

Becky Stern (sternlab.org is a DIY guru and director of wearable electronics at Adafruit. She publishes a new project video every week and hosts a live show on YouTube. Formerly Becky was Senior Video Producer for MAKE. Becky lives in Brooklyn, NY and belongs to art groups Free Art & Technology (“release early, often, and with rap music”) and Madagascar Institute (“fear is never boring”).
