LifeTrac: Assemble Frame

For more information go here.

Steps

Step #1:

NextLifeTrac: Assemble FrameLifeTrac: Assemble FrameLifeTrac: Assemble Frame

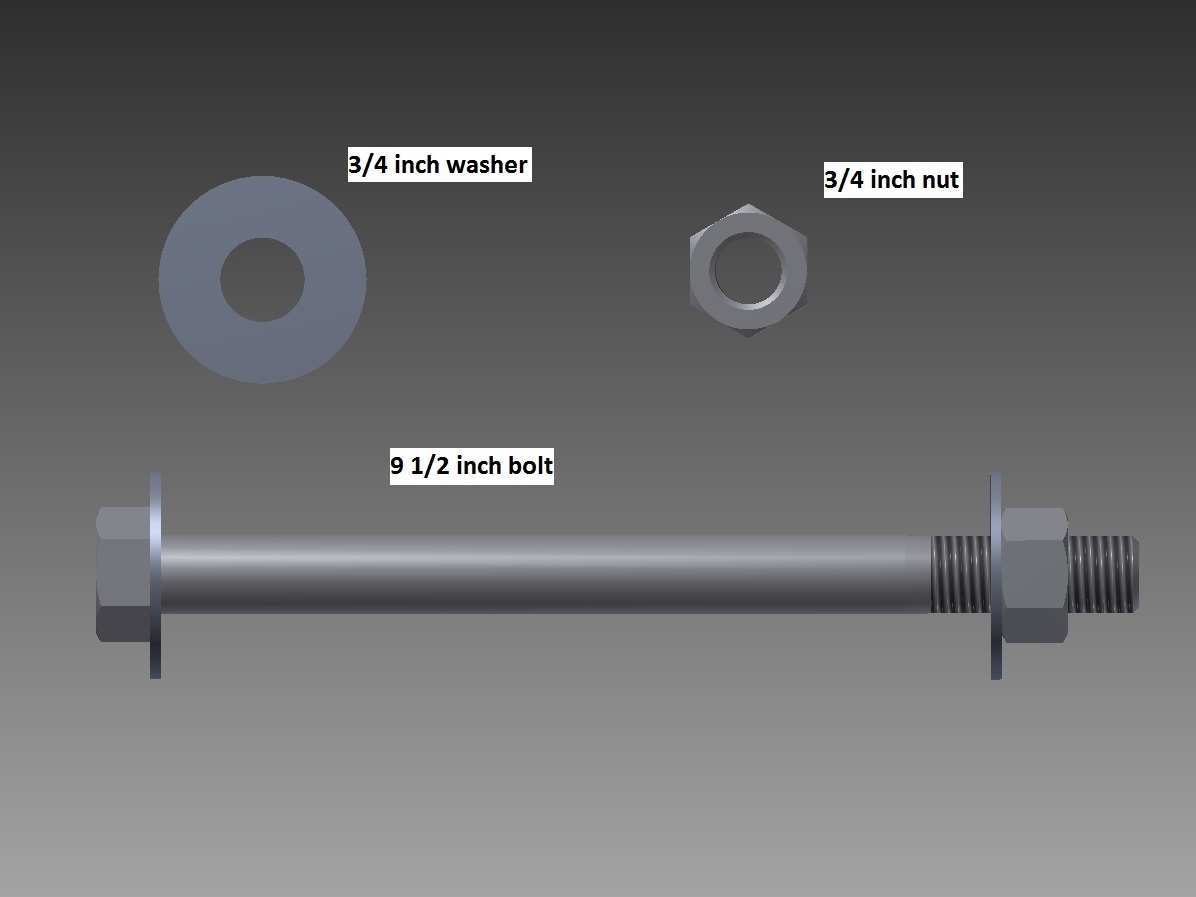

  • Allocate bolts.
  • Lay out bolts on assembly table.
  • On each bolt:
  • Attach 2 washers.
  • Loosely attach nuts.

Step #2:

NextLifeTrac: Assemble Frame
  • Lower Frame Assembly

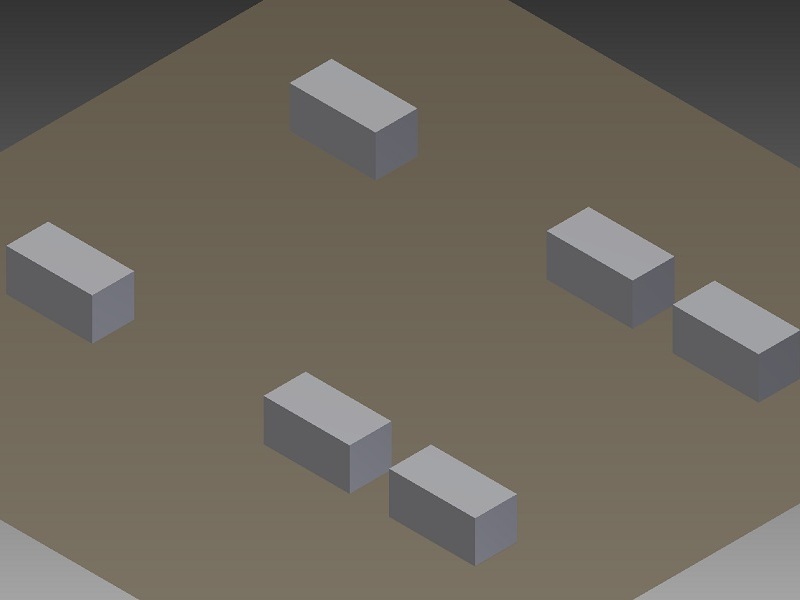

  • Place blocks on ground in assembly area.

Step #3:

NextLifeTrac: Assemble Frame

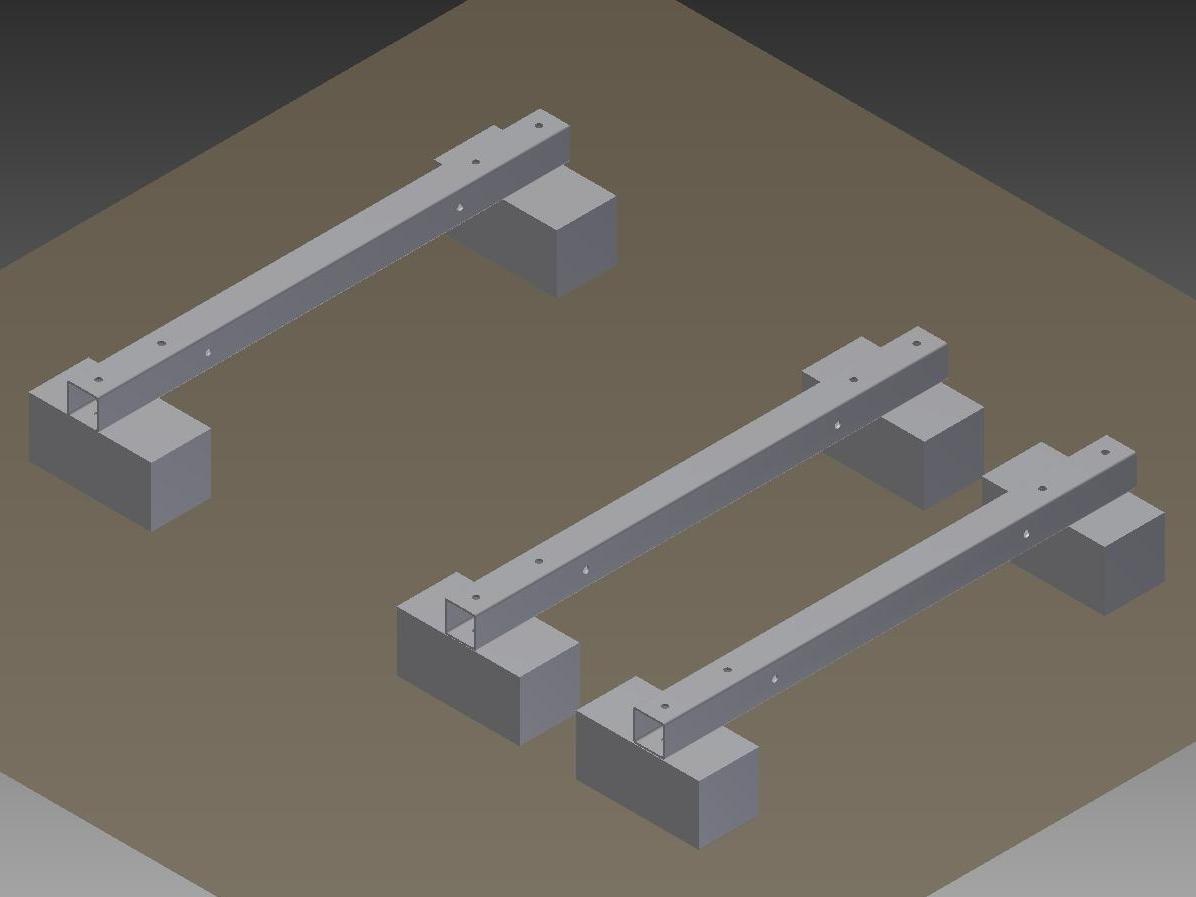

  • Place Lower Frame pieces (front-to-back) on blocks.

Step #4:

NextLifeTrac: Assemble Frame

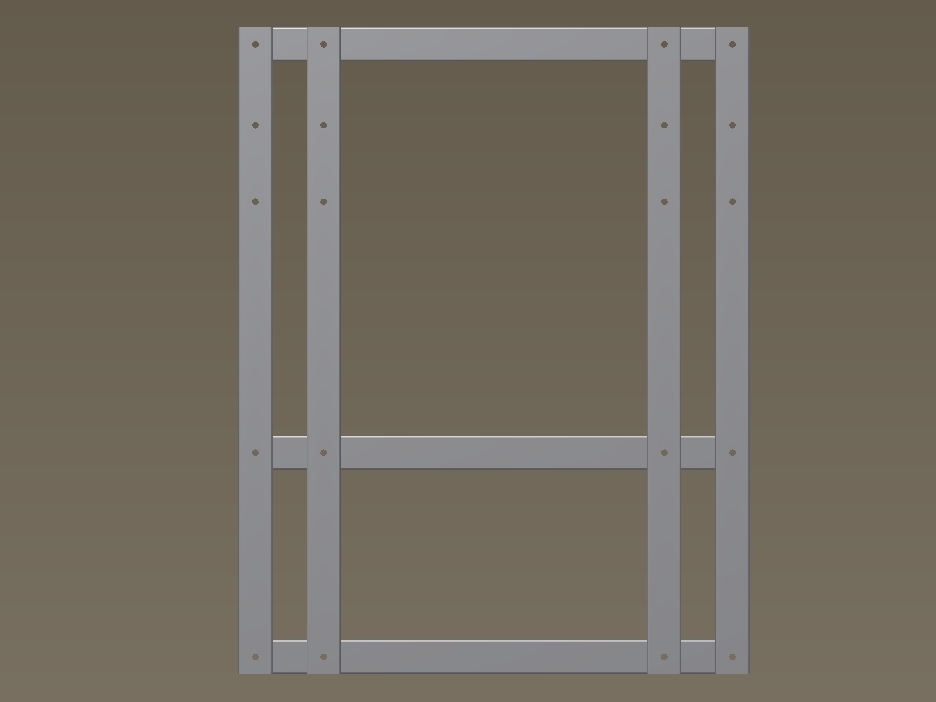

  • Align holes.

Step #5:

NextLifeTrac: Assemble FrameLifeTrac: Assemble FrameLifeTrac: Assemble Frame

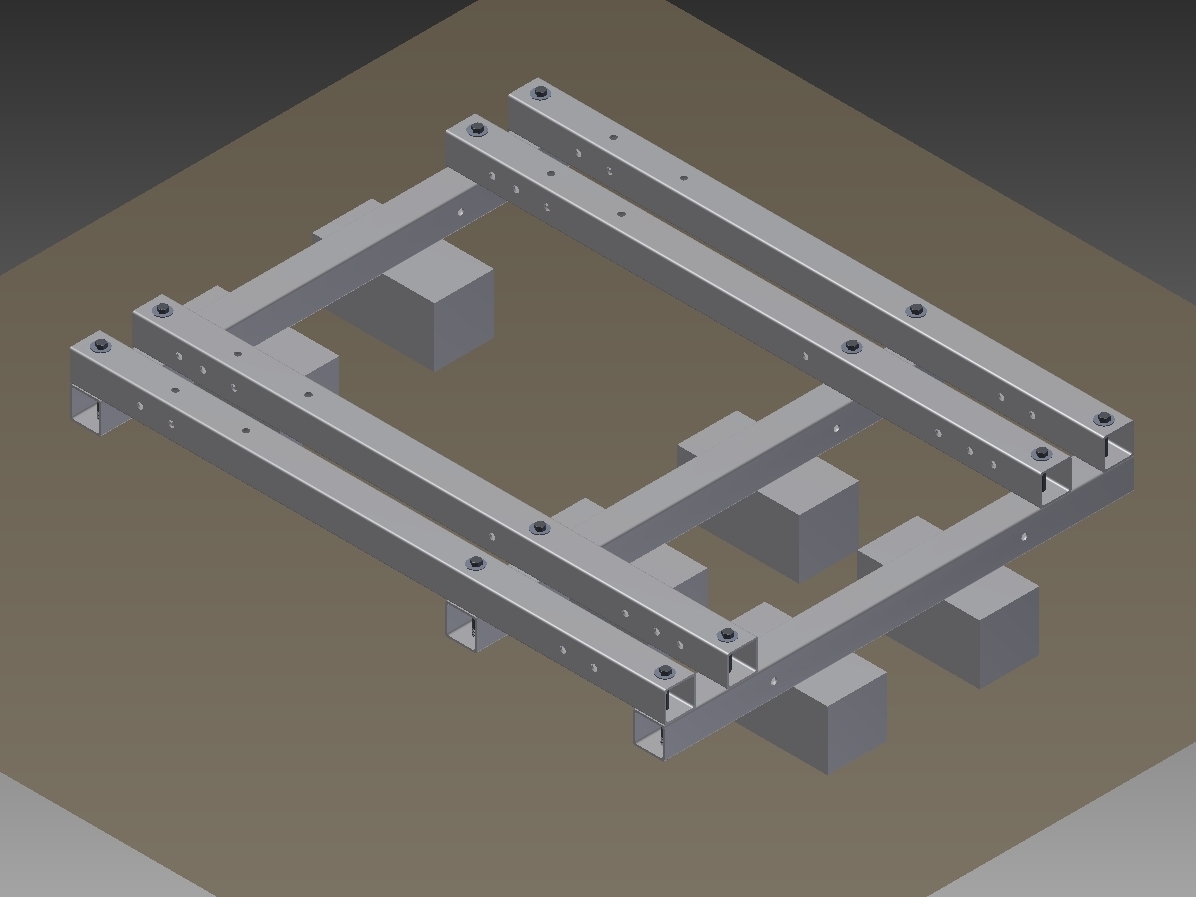

  • Bolt Lower Frame together.
  • Level the Lower Frame with level.
  • Adjust blocks.

Step #6:

NextLifeTrac: Assemble FrameLifeTrac: Assemble FrameLifeTrac: Assemble Frame

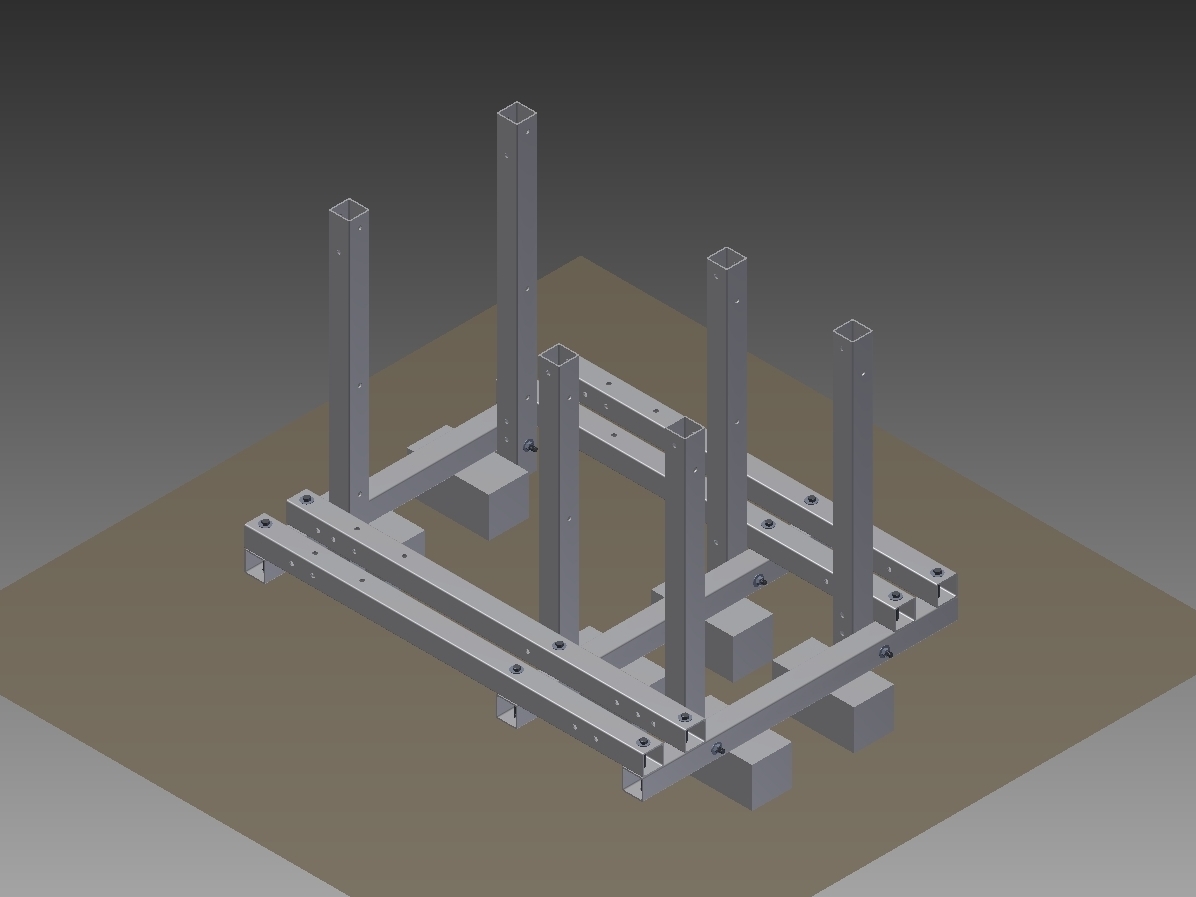

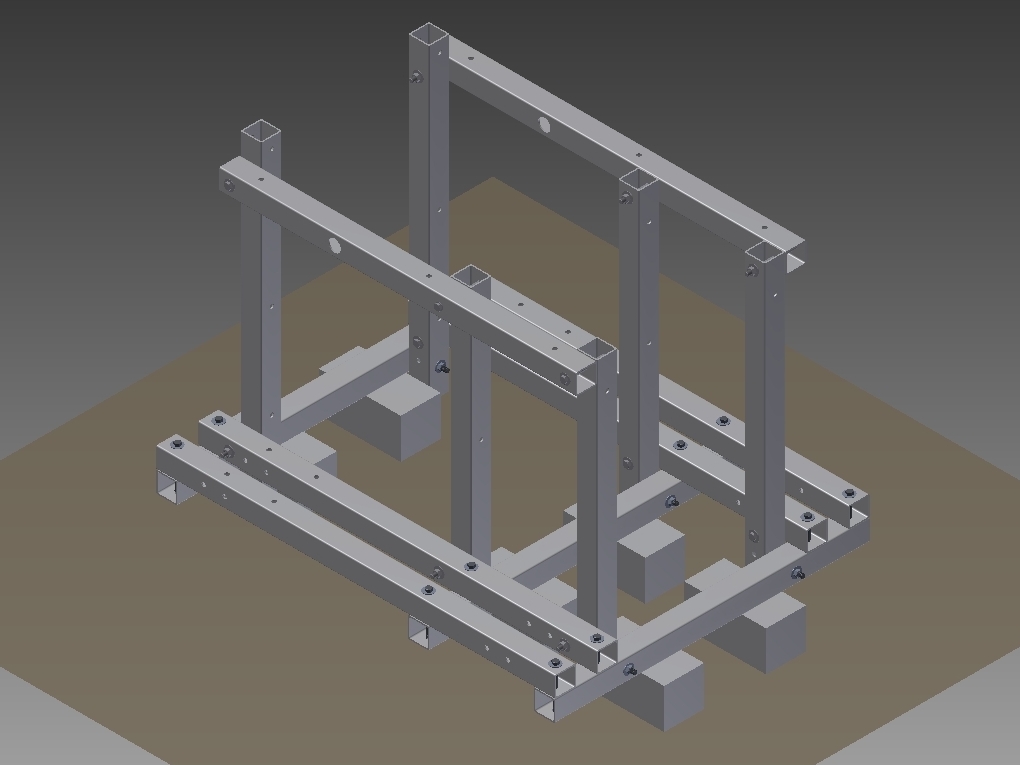

  • Mount Vertical Frame pieces to Lower Frame inner corners.
  • Tighten loosely. Leave room for play.

Step #7:

NextLifeTrac: Assemble FrameLifeTrac: Assemble FrameLifeTrac: Assemble FrameLifeTrac: Assemble Frame

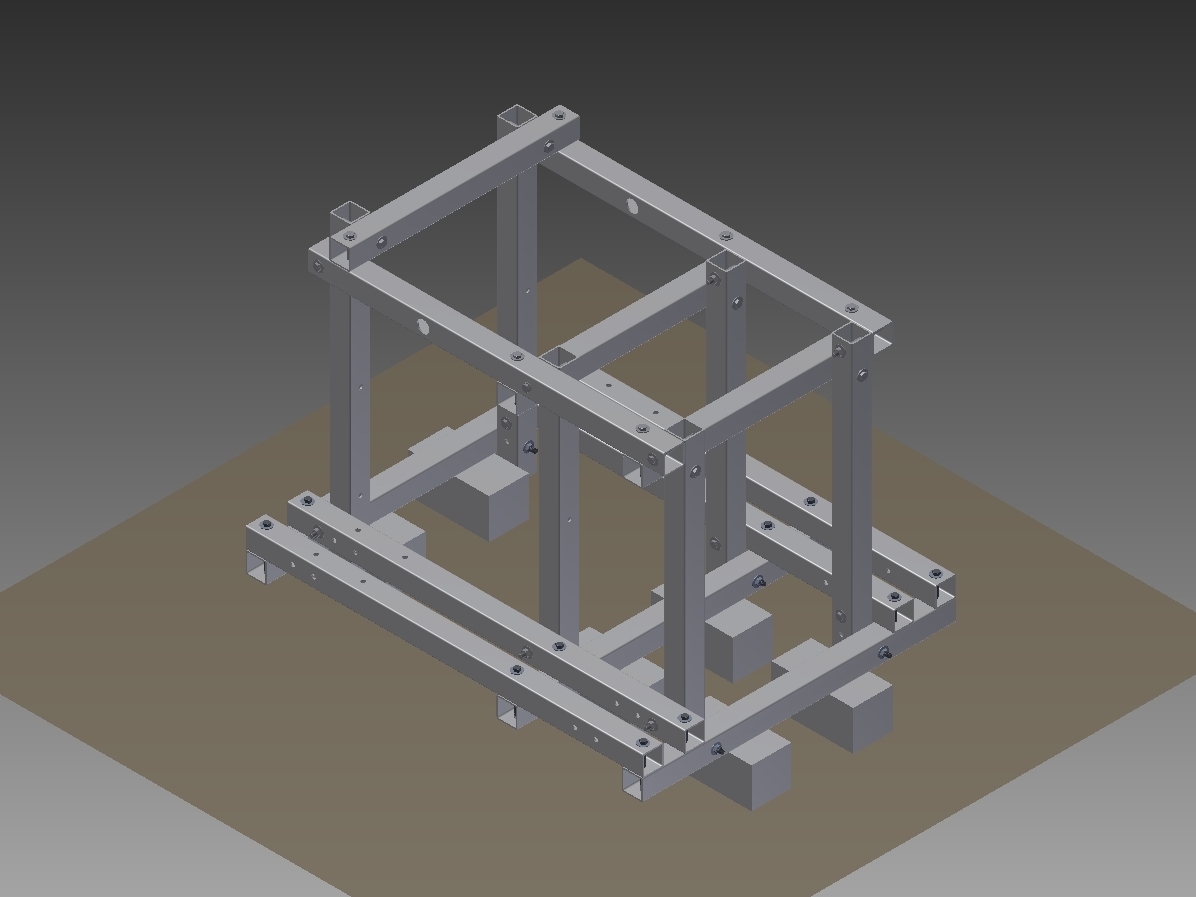

  • Mount Upper Crossbrace Frame pieces.

Step #8:

NextLifeTrac: Assemble FrameLifeTrac: Assemble FrameLifeTrac: Assemble FrameLifeTrac: Assemble Frame

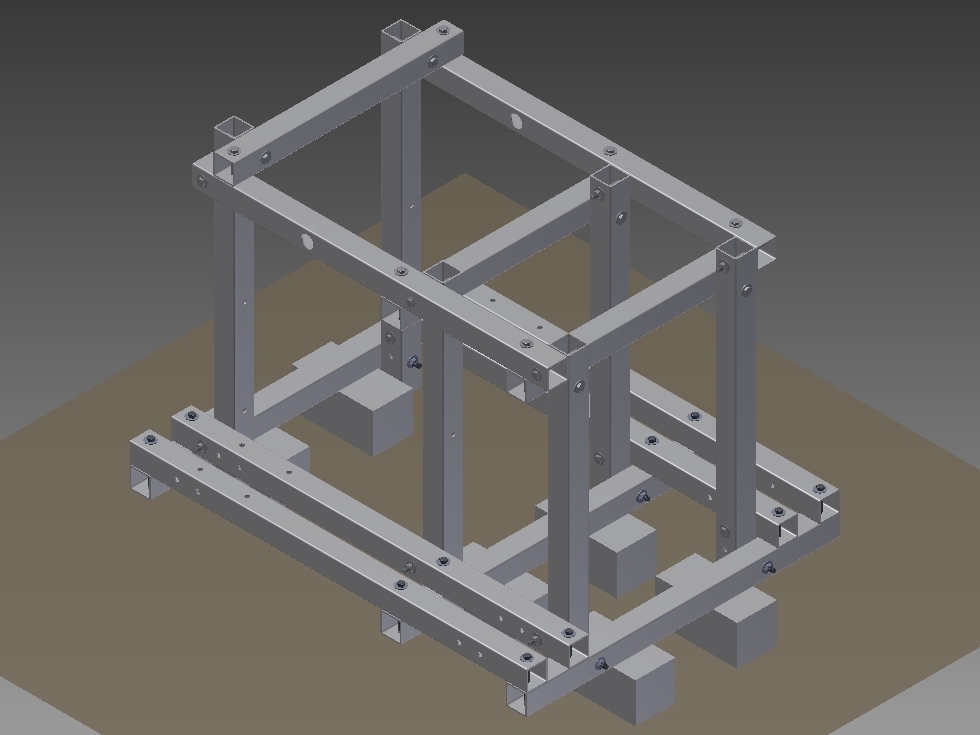

  • Mount Upper Front-Back Frame pieces.

Step #9:

NextLifeTrac: Assemble FrameLifeTrac: Assemble FrameLifeTrac: Assemble FrameLifeTrac: Assemble Frame
  • Tighten all frame bolts extra-tight.

Step #10:

LifeTrac: Assemble Frame

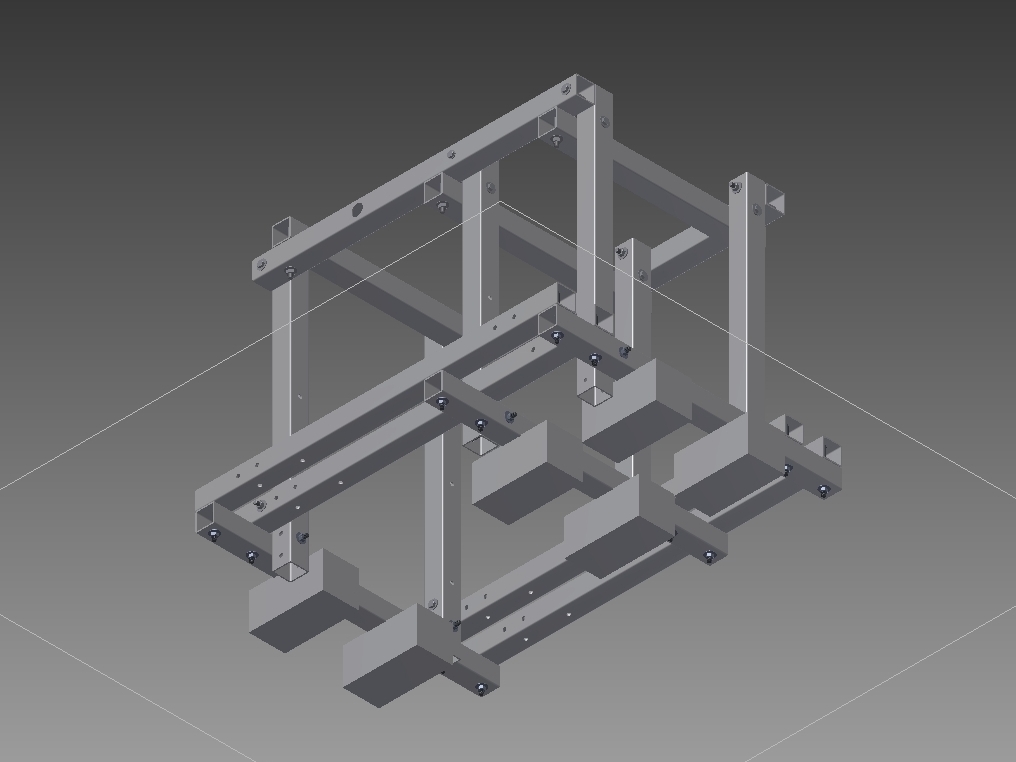

  • Finished!
