Solar LED Outdoor Lighting

Assemble your own solar-powered outdoor lighting.

Solar LED Outdoor Lighting

Solar lights are great applications for a remote application, like your back yard. You can make your own more powerful solar lights using LEDs. You can get the gear you need to build the solar lighting kit at FutureElectronics.

Steps

Step #1:

PrevNext
Solar LED Outdoor Lighting

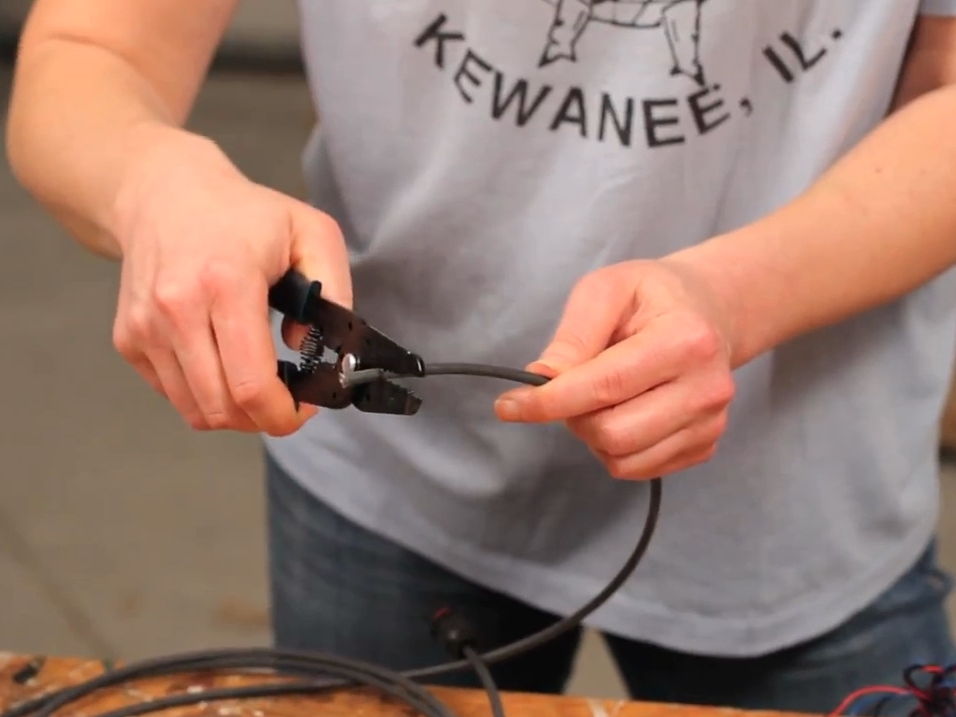

Make your wiring connections from the solar lighting system. They don’t come with the right connection to your charge controller. First strip the wires about half an inch.

Step #2:

PrevNext
Solar LED Outdoor Lighting

Then use the crimping tool to make a nice contact.

Step #3:

PrevNext
Solar LED Outdoor Lighting

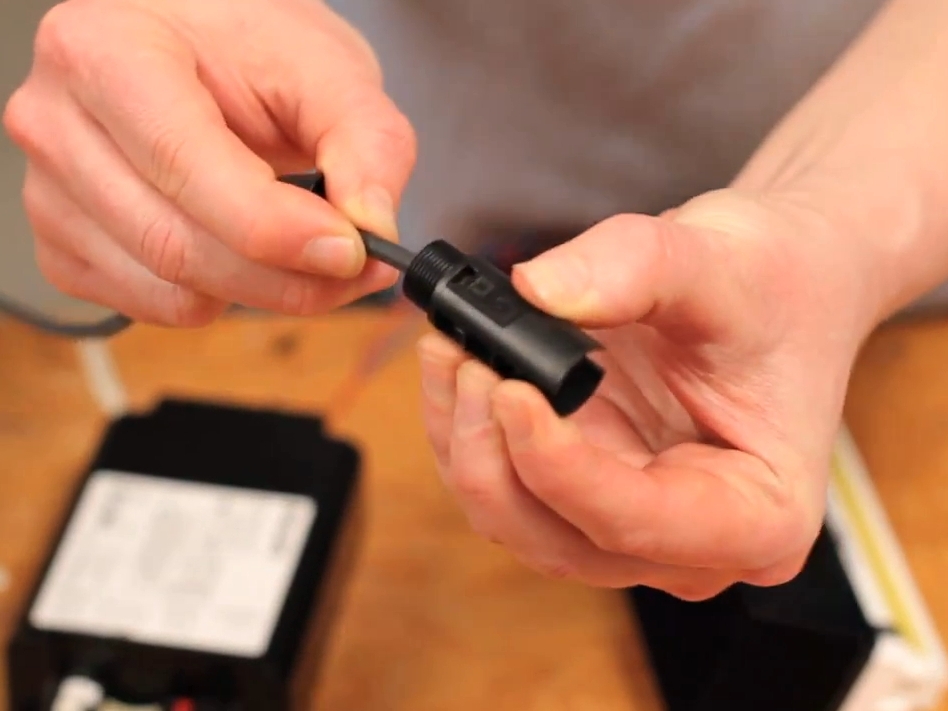

Then insert the contact into the connector to make your first “whip.” Repeat with the second wire.

Step #4:

PrevNext
Solar LED Outdoor Lighting

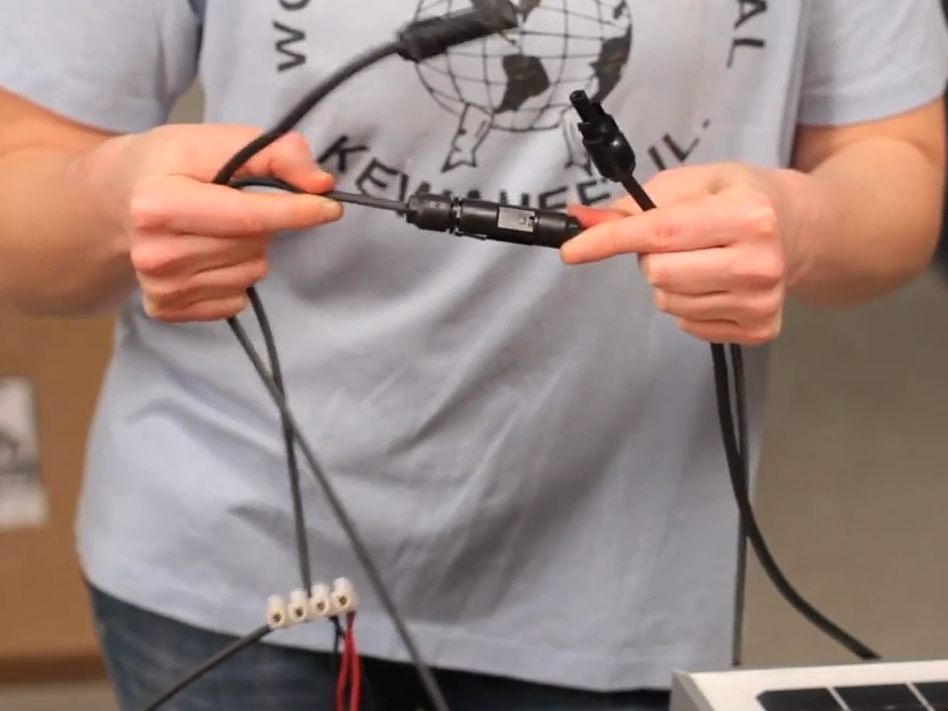

Connect the solar cells to the charge controller with your new connectors.

Step #5:

PrevNext
Solar LED Outdoor Lighting

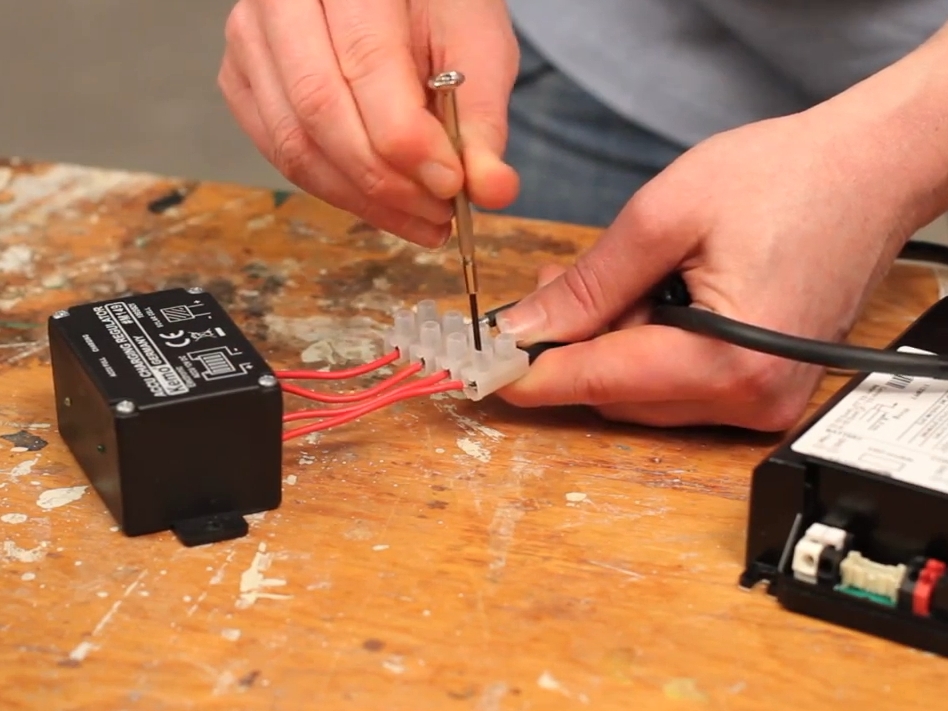

Connect to the charging regulator with your screwdriver.

Step #6:

PrevNext
Solar LED Outdoor Lighting

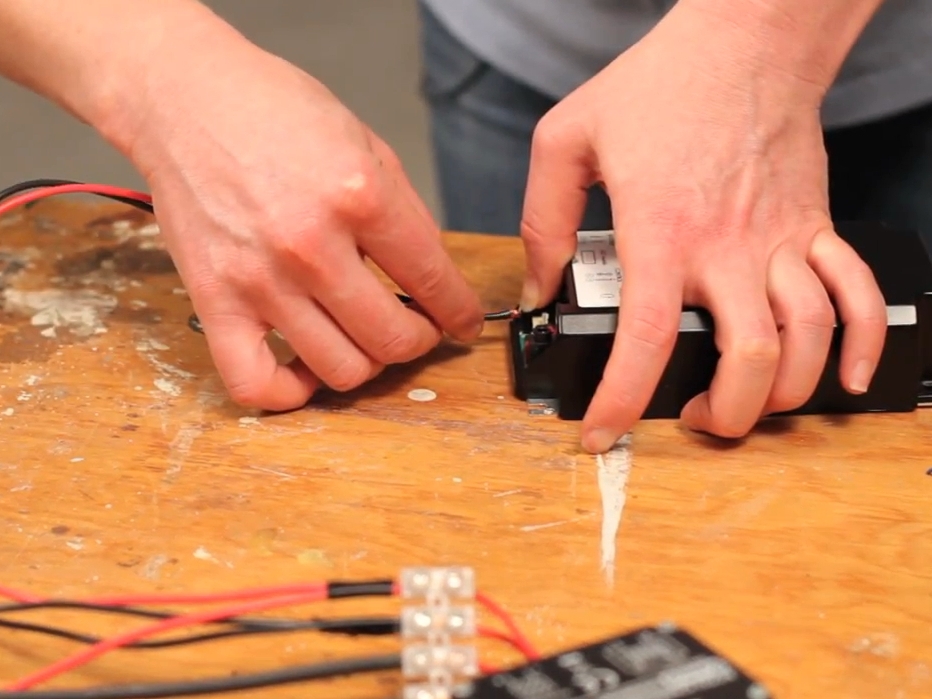

And the LED controller to the LED.

Step #7:

PrevNext
Solar LED Outdoor Lighting

The 22-watt LED we used was pretty bright.

Step #8:

PrevNext
Solar LED Outdoor Lighting

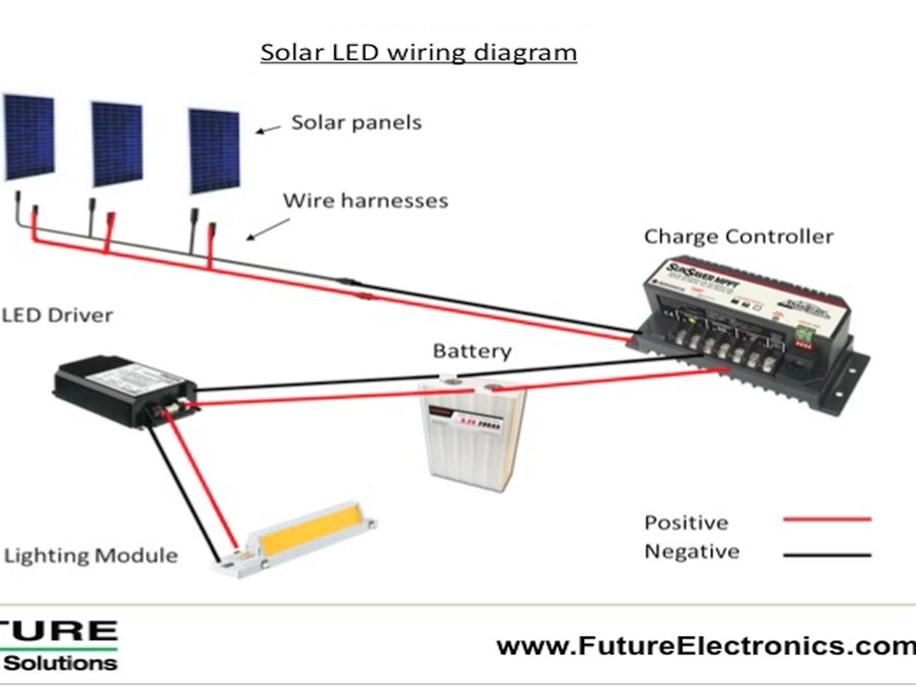

Overview of full circuit.
