Steam-Powered BoilerBot

Build your own steam-powered vibrabot, featuring a self-contained steam boiler/engine, eccentrically weighted flywheel, and wire bristle "treads".

Steam-Powered BoilerBot

You may be familiar with the battery-powered, pager motor-driven, toothbrush head bristle bot. This project turns that modern classic into a retro-fantastic, Steampunk delight by replacing the battery with a fire stoked steam boiler, the pager motor with a single-action, oscillating piston steam engine, and the toothbrush head with a pair of wire brushes!

Steps

Step #1:

PrevNext
Steam-Powered BoilerBotSteam-Powered BoilerBotSteam-Powered BoilerBot
  • Familiarize yourself with the operation and maintenance of the steam engine.
  • Follow the instructions and do a test run of the engine.
  • It's a good idea to periodically oil the piston and other moving parts, and to tighten any screws that have loosened.

Step #2:

PrevNext
Steam-Powered BoilerBotSteam-Powered BoilerBotSteam-Powered BoilerBot
  • Saw the excess handle lengths off of both wire brushes, so that the steam engine can still fit on top of them without overhanging.
  • Use the sandpaper to sand down and smooth the wood.

Step #3:

PrevNext
Steam-Powered BoilerBotSteam-Powered BoilerBotSteam-Powered BoilerBot
  • Using the needle-nose pliers, grip each clump of wire bristles at the base and bend them back about 3 degrees.
  • This is to provide the bot with a tendency to move forward when bounced up and down by the engine vibrations.
  • Repeat for the second brush.

Step #4:

PrevNext
Steam-Powered BoilerBot

Drill four small holes through the base of the steam engine. These will be used to fasten the engine to the wire brushes using the wood screws.

Step #5:

PrevNext
Steam-Powered BoilerBot
  • Place the wire brushes upright on their bristles. Space them approximately 3" apart, being careful to align them and keep them parallel.
  • Set the boiler on top of the brushes, with the boiler window port facing (relative to the bent bristle angle).
  • Carefully mark the wood through each of the four holes you drilled into the steam engine base. Drill small pilot holes in the wood at each of the four marks.

Step #6:

PrevNext
Steam-Powered BoilerBotSteam-Powered BoilerBotSteam-Powered BoilerBotSteam-Powered BoilerBot

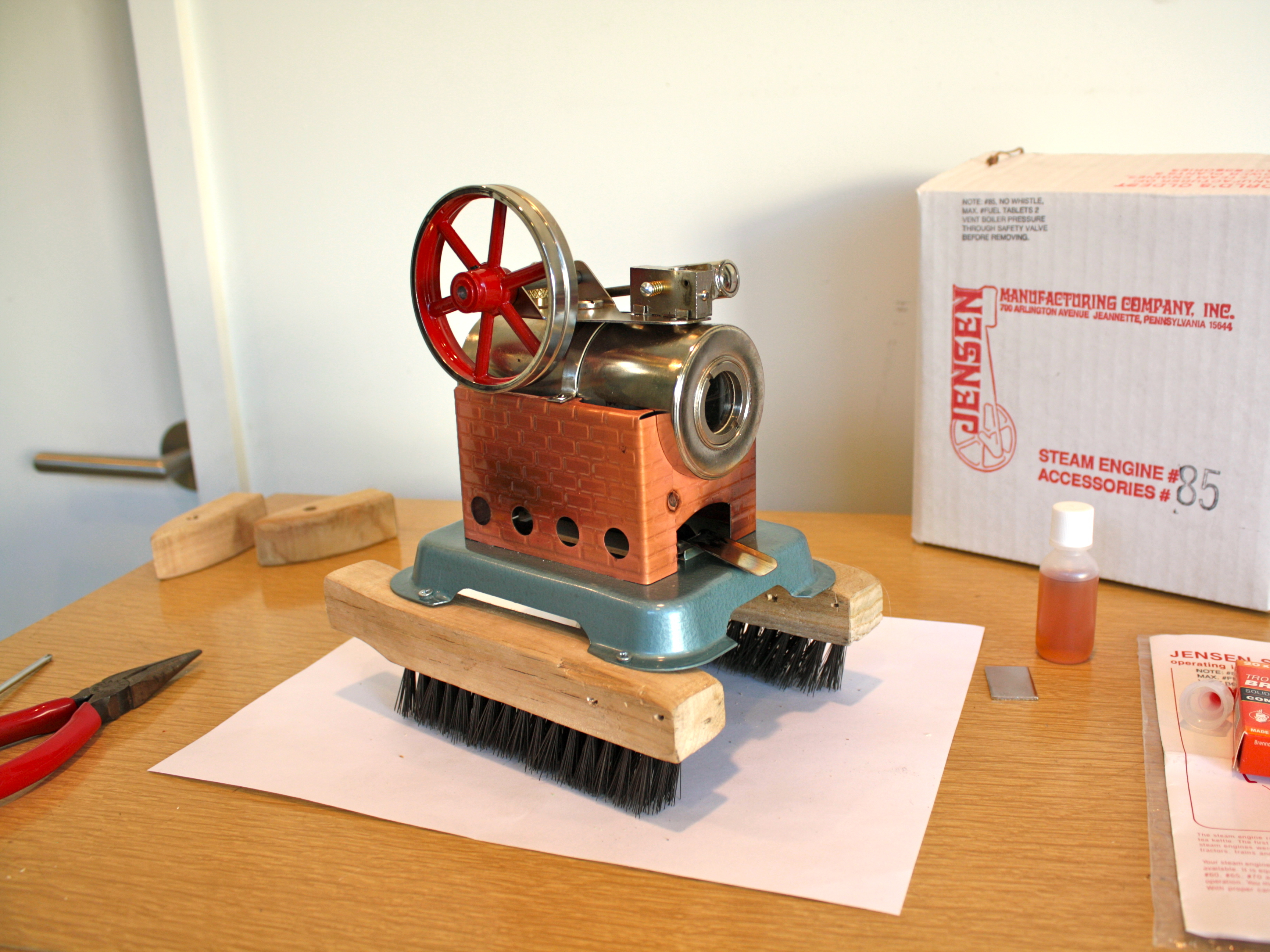

Screw the four wood screws through the steam engine base into the brushes, thus affixing the engine to its "treads."

Step #7:

PrevNext
Steam-Powered BoilerBot
  • Using small bits of hardware, such as a pair of brackets and a few screws, washers, and nuts, attach an offset weight to one spoke of the steam engine's flywheel.
  • It does not need to be very heavy, just enough to create additional vibration when the engine runs.

Step #8:

PrevNext
Steam-Powered BoilerBot
  • Unscrew the safety valve and use the funnel to half-fill the boiler (watch the port window) with distilled water.
  • Screw the safety valve back in place.

Step #9:

PrevNext
Steam-Powered BoilerBotSteam-Powered BoilerBotSteam-Powered BoilerBot

Place two dry fuel tablets in the tray, light them on fire, then slide it under the boiler.

Step #10:

PrevNext
Steam-Powered BoilerBot
  • Set the BoilerBot down on a smooth surface, such as a sidewalk, driveway, or miniature alternate universe battlefield.
  • Once sufficient steam pressure has built, give the flywheel a spin to start the engine.
  • The BoilerBot will drive around, until it runs out of fuel or water. What steamy, robotic fun!
