Infinity Light

Make your own lantern with no battery required and with very common components. It is a very useful lantern when you do not have batteries available.

Infinity Light

Convert your DC motor into a dynamo and use it to generate light without batteries. All you need is some capacitors, a DC motor, diode, wire, gear system and LED. To make it light all you need to do is spin your dynamo.



Step #1:

Infinity LightInfinity LightInfinity LightInfinity Light

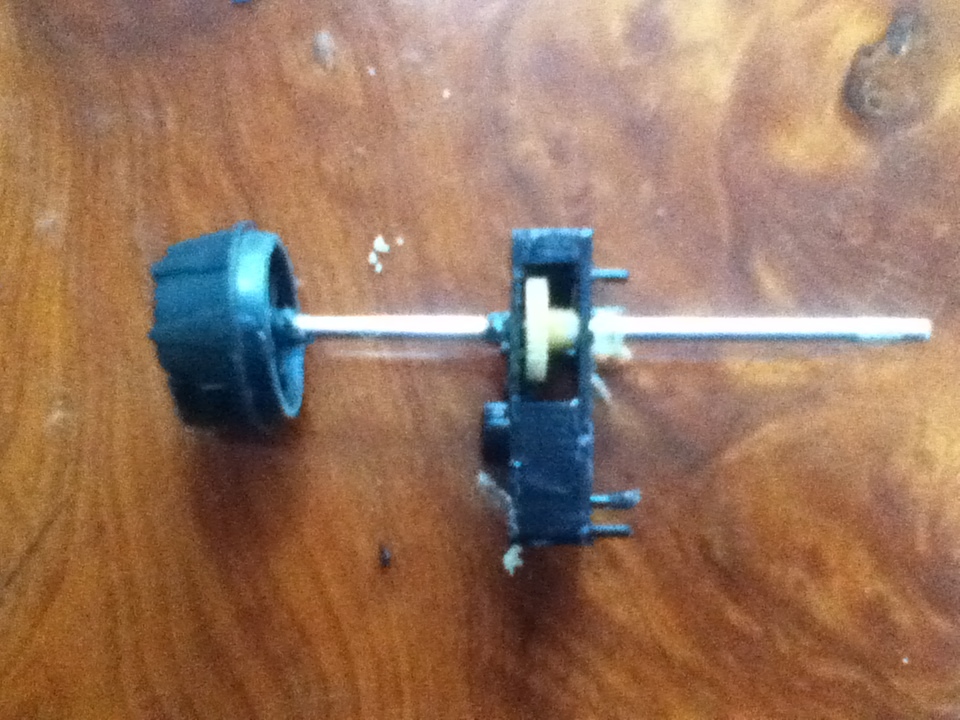

The main thing you need is the gear system with one wheel and the DC motor. You need to put a gear on the motor shaft and attach it to the gear system as in the image.

Step #2:

Infinity LightInfinity LightInfinity Light
  • Now we are going to build the "battery system" using capacitors. By connecting the capacitors in parallel (not series), we can hold more charge by using any combination of capacitance and quantity of capacitors. Generally, for the electrolytic capacitors used here, size matters. The bigger the capacitor the more charge it can hold. The capacity of every capacitor along with its unit of measure is marked on its case. Most common electrolytic capacitors are measured in microfarads (μF or MFD).
  • To make the "battery," solder all the negative pins of the capacitors together. Solder this to a length of wire.
  • Solder all the positive leads of the capacitors together then solder this to a length of wire.

Step #3:

Infinity LightInfinity LightInfinity LightInfinity Light
  • Now, we are going to connect the gear system and dynamo to the storage system.
  • Solder one diode lead to the negative terminal of the DC motor.
  • Solder the negative lead of the LED to the free diode lead from the dynamo. Don't forget to add the appropriate resistor for the LED.

Step #4:

Infinity Light

We are finished. Now you can decorate it the way we want and use it when you want. All you need to do do is spin the wheel.
