Infrared Paint Remover: V2

A modern method of removing paint from wooden surfaces is the use of infrared rays. This method has gained popularity over the past decade as an alternative to mechanical and chemical methods of removing paint. Mechanical methods such as sanding, grinding, or shaving usually increase hazards such as lead dust. Chemical solutions minimize the lead dust but result in a gooey mess that requires cleanup and more chemicals for neutralization. Infrared paint removers ofter an alternative which minimizes dust and eliminates chemicals. When exposing a painted surface to infrared rays, the rays penetrate the paint, warm the substrate below the paint, thus releasing the paint’s grip. In practice, the infrared paint remover (IPR) held over a painted spot will cause the paint to slowly bubble and lift, making it easy to scrape it off with a scraper. IPRs are seen most often used by people restoring old houses or windows. They are, however, increasingly seen used in a variety of applications. The disadvantage of an IPR is that it is not guaranteed to be effective in every situation. See the conclusion of this article for more detail. IPRs are most effective on thick layers of old paint, especially aligatored paint. They do not work well on calcimine, milk paints, and will not remove shellac or varnish.

Note that IPRs are not the same as "hot plates," which heat paint via convection. Hot plates scorch and boil the paint through proximity to a heated element. That method risks scorching the wood substrate and releasing toxic gases. IPRs rely not on convection, but mostly on radiation. The goal is to penetrate paint and warm the substrate (wood), releasing the bond between paint and wood, slowly, without raising the temperature high enough to vaporize lead. When you stand at a sunny window on a cold winter day, and you feel the sun’s heat on your face even though the air outside may be zero degrees, you are being heated by radiation. In such case, energy is transferred directly to you and not via physical contact with an warmer object (conduction), nor using air as a carrier of heat (convection).

In August of 2004, frustrated at the high cost of commercial Infrared Paint Removers ("IPRs"), I cobbled together a home-made unit using a quartz heater and some miscellaneous hardware. I wrote up a small page outlining my experiments for the benefit of other old house restorers out there. The response was unexpected. It seems there are many out there like to tinker, save $, and DIY.

Here now is Version 2 of the IPR. Having traded my original scratch-built quartz unit for a Herbeau fireclay sink, and in need of an IPR, I elected to investigate this new and promising modality of paint removal: ceramic infrared.

Theory:

Commercially sold IPRs use quartz rods to generate infrared rays. My unit would be based on a ceramic emitter instead. Why ceramic? One reason is that a ceramic unit would be easier to build with fewer parts. Commercial ceramic emitters are readily available. Efficiencies for ceramic emitters run from 85 to 96% whereas quartz ran around 60%. Therefore, a higher percentage of the energy supplied to the unit would be transmitted as infrared rather than light. Quartz rods tend to have infrared hotspots. Cermaic on the other hand, produces a more evenly distributed heat.

The Unit:

Anyway, yet again, this is the time to point out some safety issues and make a disclaimer. Making your own IPR involves electricity. The project involves wiring as well as drilling, sanding, and cutting. (jeez doesn’t sound too bad) I am not advocating that you run out and build one, I am presenting my method here for your review. If you do make one, you do so of your own accord. If you electrocute yourself, or burn your house down, well, hey, that’s life, and your own responsibility. I am comfortable with the potential hazards. You may not be, and I urge that if you should make one anyway, you proceed with safety in mind and a good dose of common sense.

Thus my intention to build a new, ceramic based, IPR for the same or less money.

Steps

Step #1:

PrevNext
Infrared Paint Remover: V2

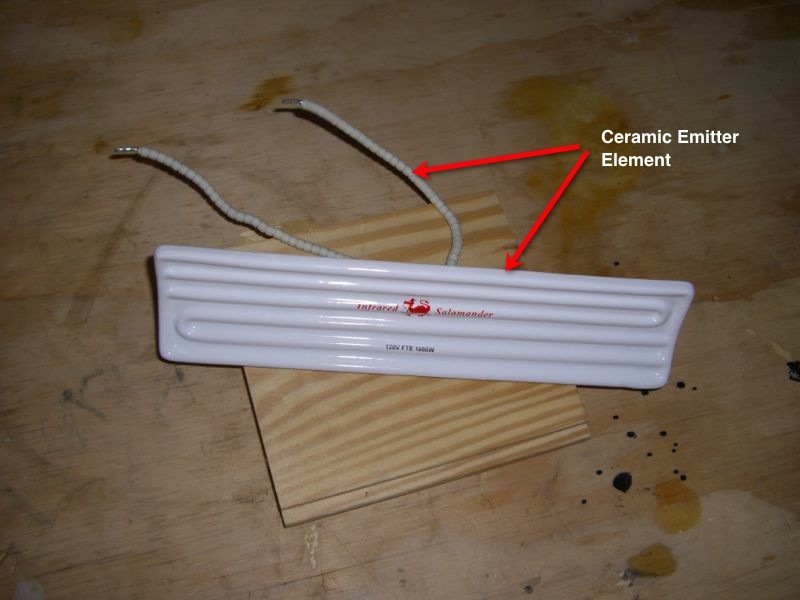

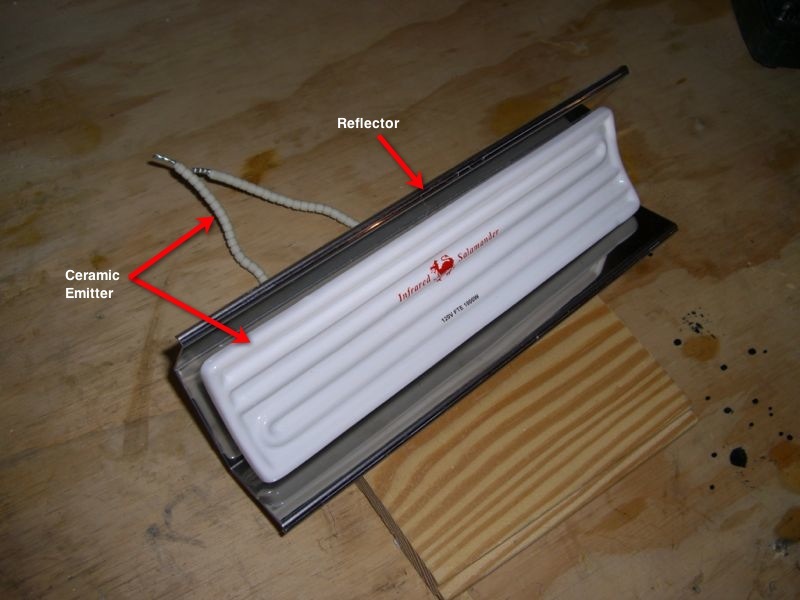

The first step was to order the ceramic emitter and gather some of the other parts that would be required to get this show on the road. The emitter I selected was a Salamander FTE module. This particular model (FTE-120-1000) is specified to operate at 120 volts. The emitter is manufactured by Mor Electric and can be purchased on their website.

Step #2:

PrevNext
Infrared Paint Remover: V2
  • Conveniently, Mor also offers reflectors and housings designed to fit their ceramic emitters. These housings are designed to be affixed to some stationary object like a wall or inner oven surface. With a little finagling, we will convert it to our use. Shown below is the housing/reflector as it arrived from Mor.
  • The reflector is in the center and is of polished stainless steel. The housing is made of extruded aluminum.

Step #3:

PrevNext
Infrared Paint Remover: V2

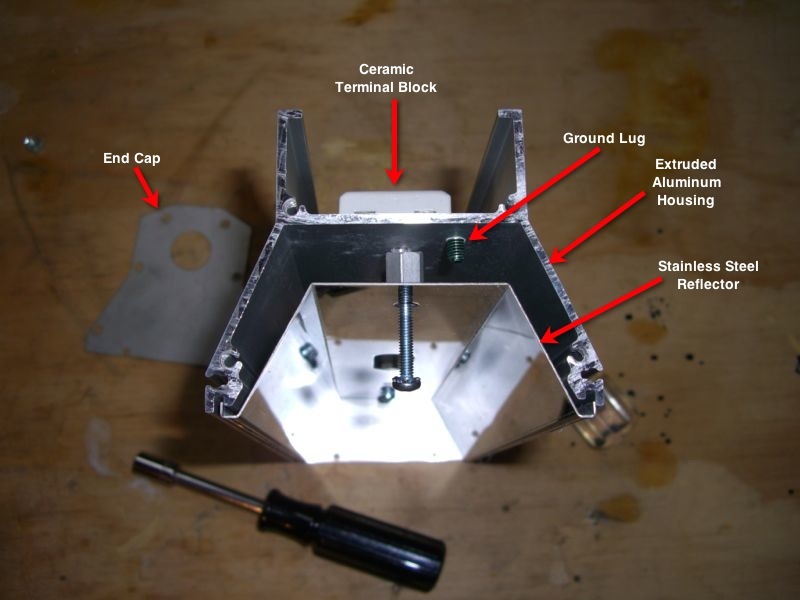

  • The housing and reflector are shaped and designed for the type FTE element shown previously. You can see that the housing has a ceramic terminal block installed. This makes it very easy to wire the element to house voltage.
  • The cap cover for the housing is seen in the previous image. This plate has grooves which slide onto the housing, covering the ceramic terminal block and wiring. All is held together by the end plates (steel). One end plate is seen at the left of the image above, the other end plate is affixed to the housing.
  • To help visualize it, here is an end view with the reflector installed into the housing.

Step #4:

PrevNext
Infrared Paint Remover: V2

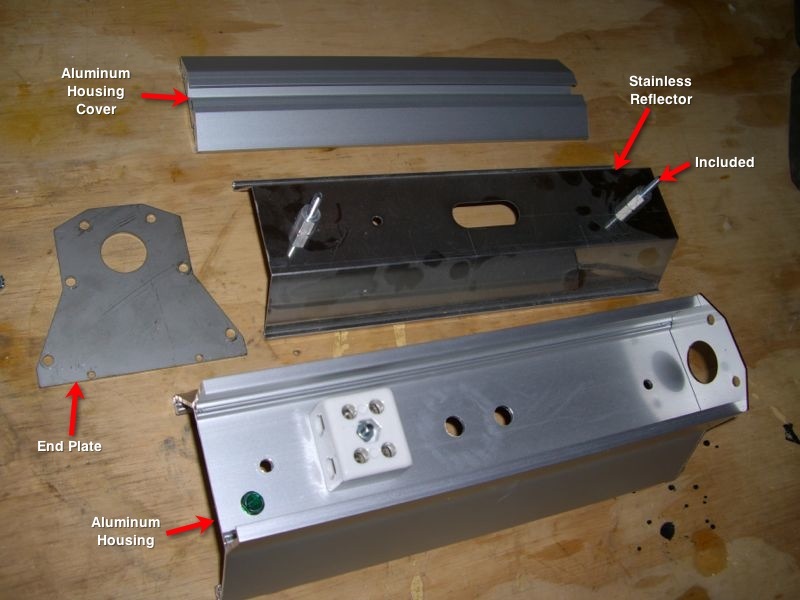

  • Confused about how it all goes together? Don't be. Let's take it apart and start putting the pieces together in sequence. We have paint to strip.
  • The first step is to install the ceramic emitter into the reflector. Shown here is the backside of the ceramic emitter poking through the hole in the reflector. The hole of the reflector is designed to accept the "knob" of the emitter.
  • The knob has the two leads poking out of it. The knob also has grooves which allow it to be clipped in place using the supplied clip.

Step #5:

PrevNext
Infrared Paint Remover: V2

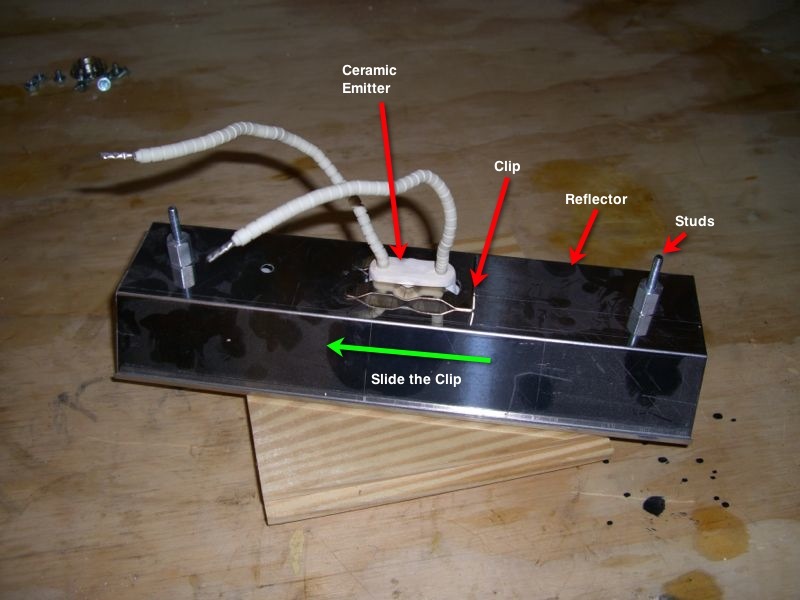

  • The clip is the only mechanical fastener for the emitter. It is sufficient to hold it securely in place. Any blunt trauma to the unit great enough to dislodge the clip would likely break the emitter first.
  • The leads emanating from the emitter are part of the emitter itself. They cannot be removed. They are metal wire encased in small interlocking ceramic insulators.
  • Be careful with these. It you bust one off then you'll be breakin' out that Mastercard to order another emitter. Shown here, the assembly is simply turned over, so you can see the front.

Step #6:

PrevNext
Infrared Paint Remover: V2
  • OK, we're going to set aside the emitter/reflector assembly for a moment to concentrate on preparing the housing.

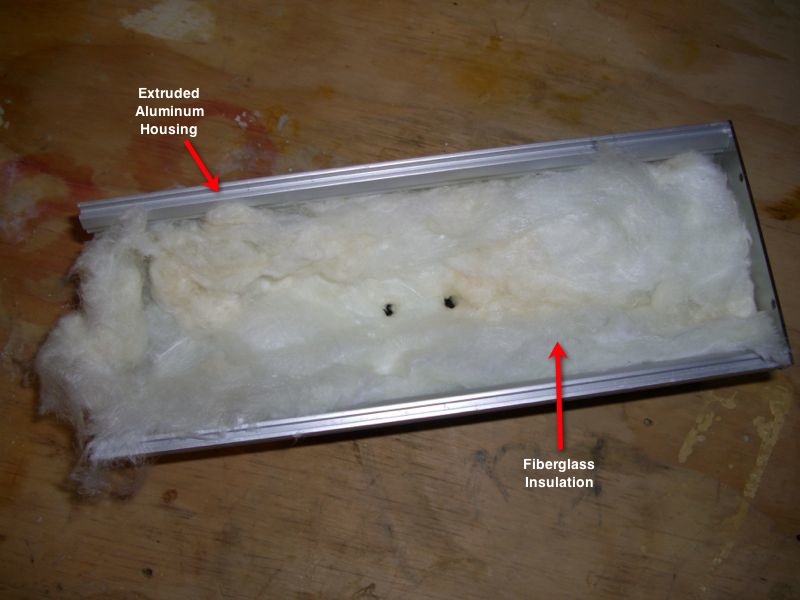

  • This image shows the housing flipped over, and a thin bed of fiberglass insulation is placed in the bay which will receive the reflector. I grabbed a handful from a roll of R13 wall insulation I had lying around. The housing has two holes for the leads. The insulation is cleared from covering these holes using the point of a pencil.

Step #7:

PrevNext
Infrared Paint Remover: V2
  • We've now hit the meat and potatoes of the assembly operation. The reflector/emitter assembly is inserted into the housing.
  • This can only be done one way. The leads from the emitter are first gently pushed through the holes in the housing. Then, the reflector's studs are inserted into the housing's holes. Two nuts (supplied) are placed on the studs to secure the two assemblies together. In the image I am tightening these with a nut driver.

Step #8:

PrevNext
Infrared Paint Remover: V2

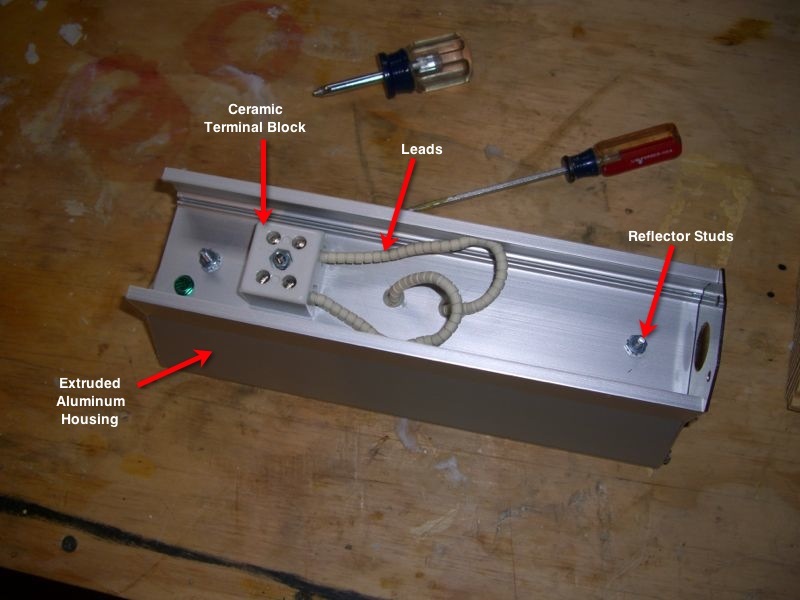

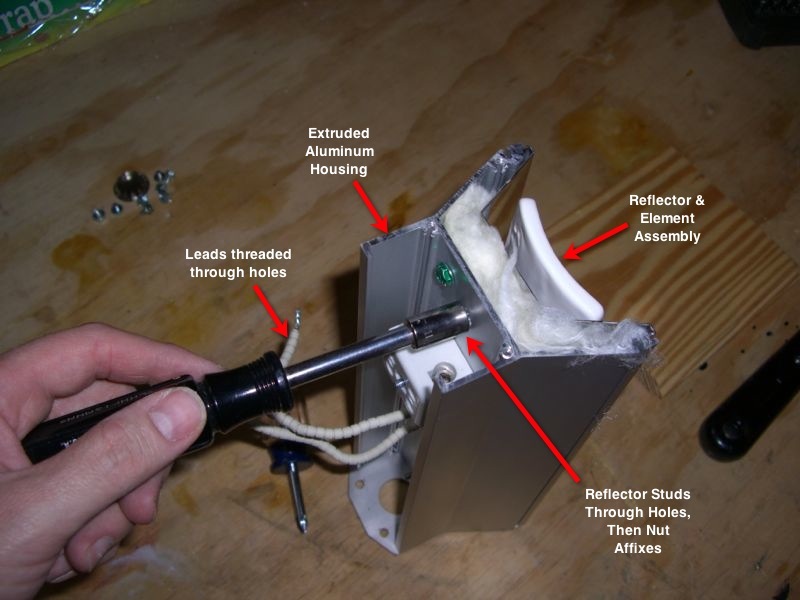

  • Now we can turn the unit upright and begin to work on the electricals. Shown here, the emitter leads are secured into one side of the ceramic terminal block.
  • You can see the two nuts holding the reflector assembly into the housing. You can also see that one end plate is affixed (the housing/reflector comes assembled, I never removed it). You can also see the green ground lug next to the terminal block. This will come into play in a moment.

Step #9:

PrevNext
Infrared Paint Remover: V2Infrared Paint Remover: V2Infrared Paint Remover: V2

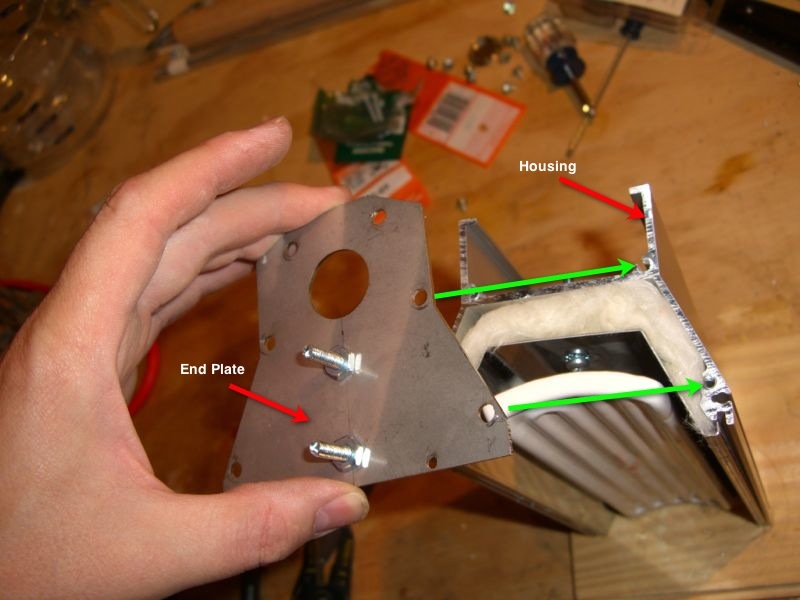

  • Next we remove the one end plate from the assembly, and modify it along with the other end plate. First we are going to install a grommet in the end plate that will hold the power cord. These images show the grommet before and after installation. The plates come from the factory with all the holes shown in these images.

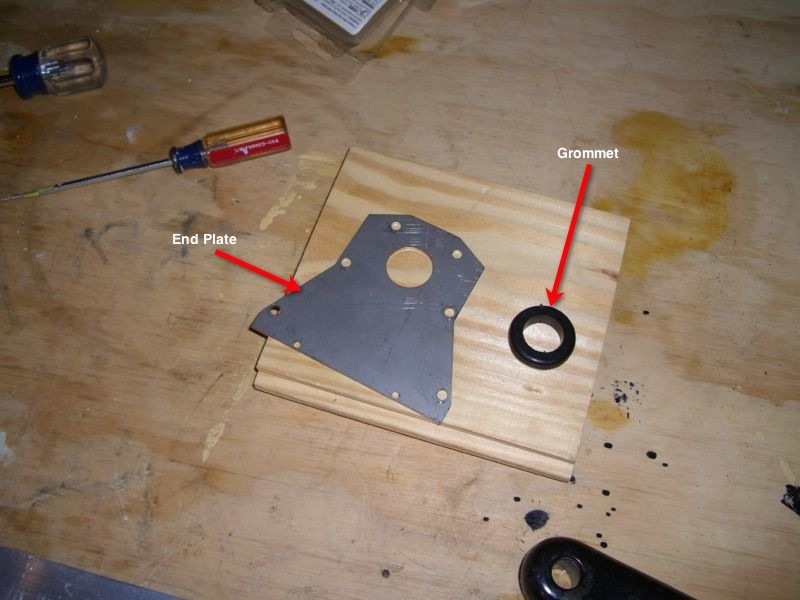

  • The large hole holds a 3/4" ID grommet very nicely. Only the plate through which the power cord will pass is fitted with a grommet. The other plate is left as is.

Step #10:

PrevNext
Infrared Paint Remover: V2Infrared Paint Remover: V2Infrared Paint Remover: V2Infrared Paint Remover: V2

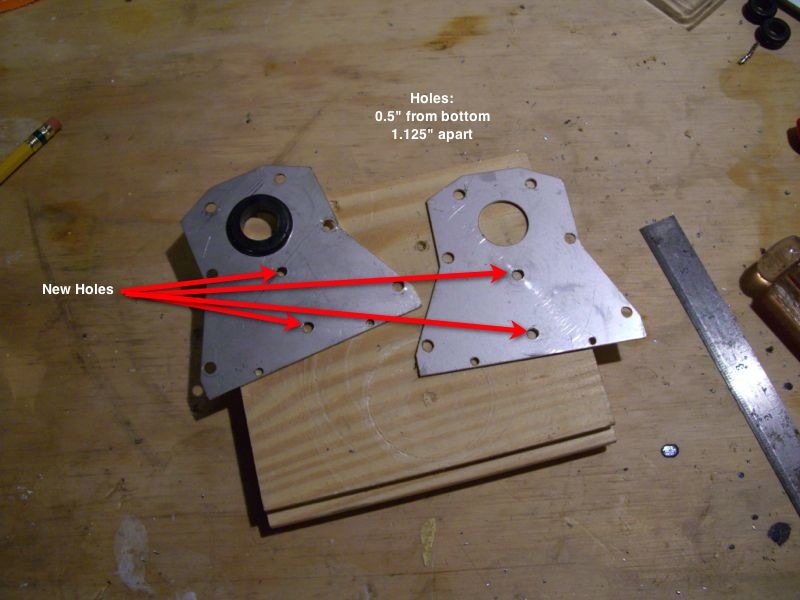

  • "Height adjusters" are the projections that keep the IPR sufficiently away from the wood being worked on. For this design, I elected to place these on the ends of the unit rather than along the sides, as is traditionally done.
  • I opted to do this because it is easier to place them on the ends rather than work them into the angles of the housing. We'll get into the height adjusters more in a bit, but for now, we must prepare the mountings for them on the end plates.

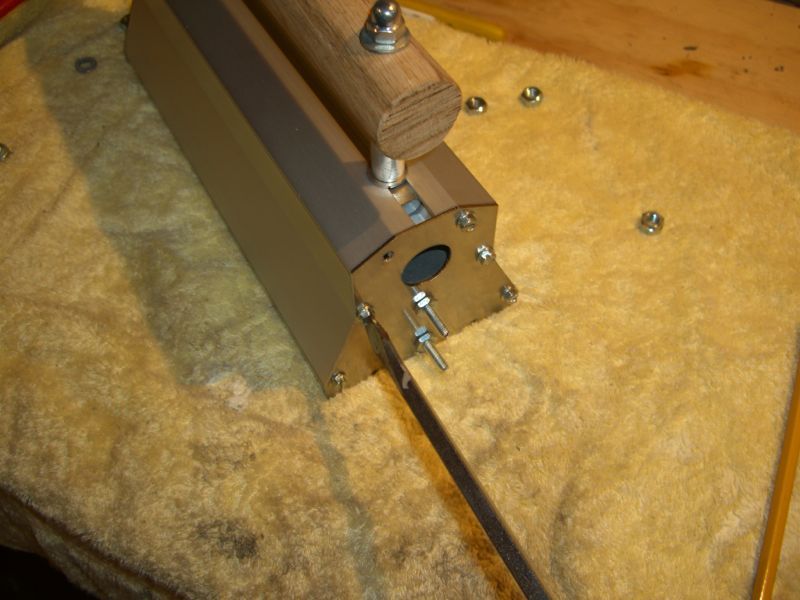

  • The three images here show the end plates being drilled for two screws which will hold the height adjusters.

Step #11:

PrevNext
Infrared Paint Remover: V2

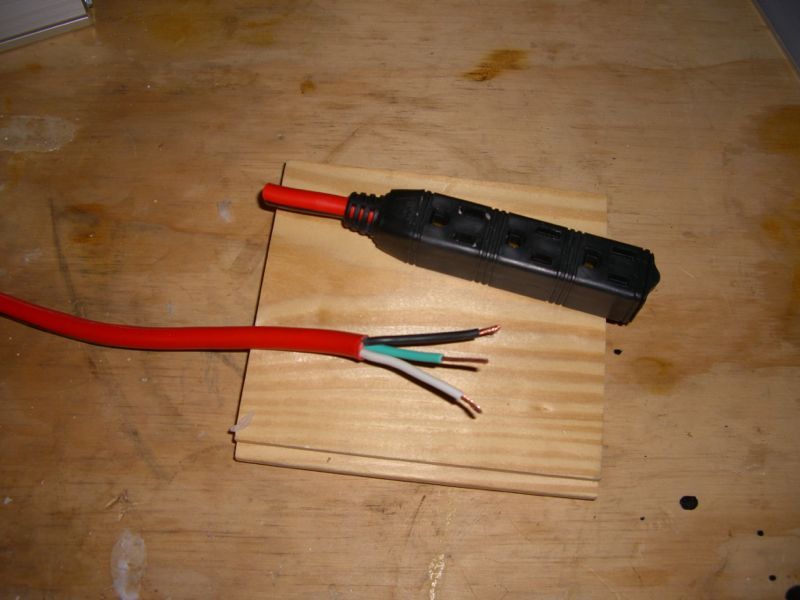

  • Let's prepare the power cord. Mine is a medium duty from Home Cheepo. You must use a medium or heavy duty cord that includes a ground wire. Grab it by the neck, hold it down on the bench, and cut the head off. Don't hesitate or you'll get that twinge of guilt so common when ruining a good extension cord.
  • Separate the wires and strip 3/8" off each one.

Step #12:

PrevNext
Infrared Paint Remover: V2Infrared Paint Remover: V2Infrared Paint Remover: V2

Here I am dry-fitting the end-plate without the grommet. This one goes on the end away from the terminal block. I removed it again shortly thereafter. The screw studs face outwards.

Step #13:

PrevNext
Infrared Paint Remover: V2Infrared Paint Remover: V2Infrared Paint Remover: V2

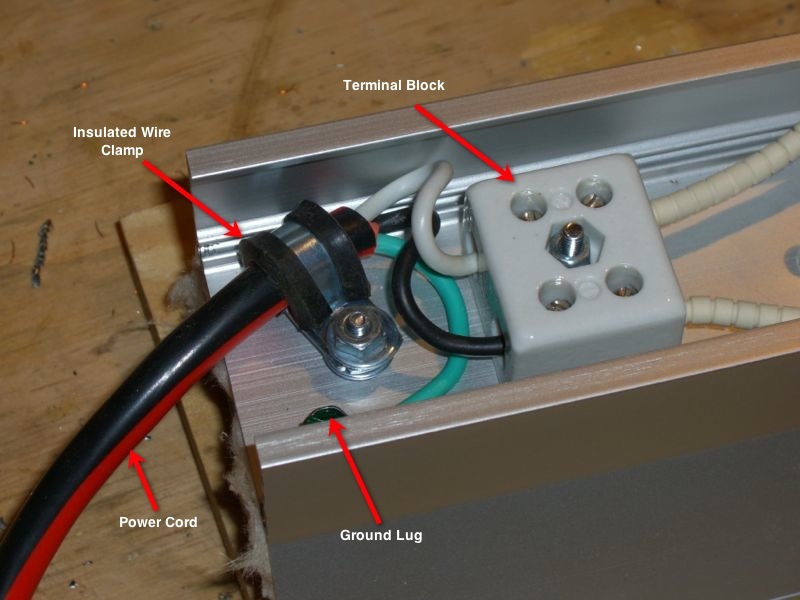

  • Next we take the grommeted end-plate and thread the power cord through it. Then we affix the power cord to the housing using an insulated wire clamp. We secure the black and white wires to the terminal block. White and black can go in either connector. The green ground lead is then secured to the green ground screw.
  • Try to arrange the wires so that they contact the housing as little as possible. The housing gets very hot, and I am concerned about the AC wires touching the housing. I intend to sheath the wires in Teflon tubing and will update this section when I do.

Step #14:

PrevNext
Infrared Paint Remover: V2
  • At this point you might be wondering where the power switch is. I've elected to eliminate the power switch. The unit is turned on or off by plugging it in. This approach has several key advantages: there is no chance the unit will be accidentally turned on; there is no voltage at the unit when it's off; one less part to buy.
  • As for a fuse, I'm investigating ways to implement it into the power cord. In the meantime, I always make sure that the AC outlet is properly grounded. I never assume. A three-dollar outlet tester from Home Depot does the trick.
  • As with the quartz-based IPR, the primary safety net is grounding the chassis and ensuring that the AC outlet used is properly grounded.
  • The secondary safety nets are a fuse and the handle. Local fuses tend to be used to protect appliances. This "appliance" doesn't really have any components to protect but it's nice to know it's there in case the ground fails and/or the house circuit breaker is slow to act.
  • Thirdly, as you'll see below, in case all else fails, the handle is made from a non-conducting material (wood).

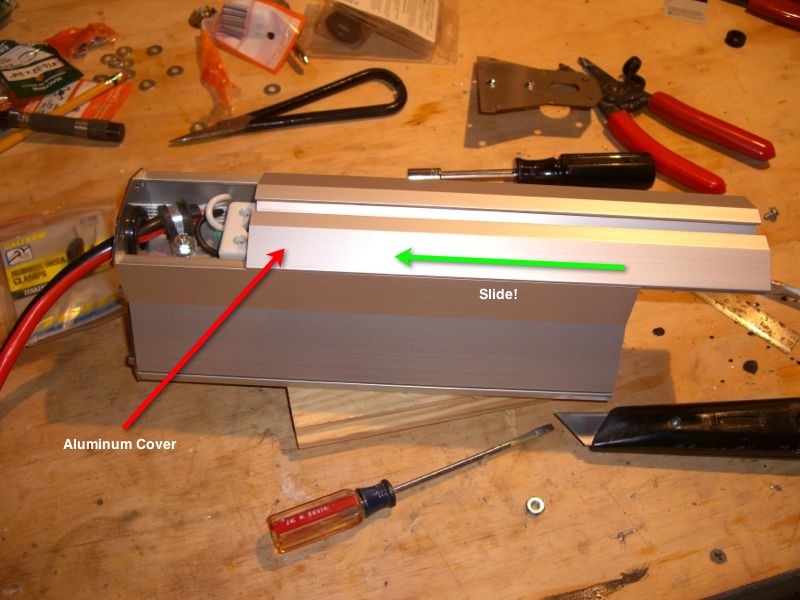

  • It's time to slide the aluminum cover "cap-plate" on. This cover has internal channels that engage the edges of the housing. Slide it all the way on.

Step #15:

PrevNext
Infrared Paint Remover: V2

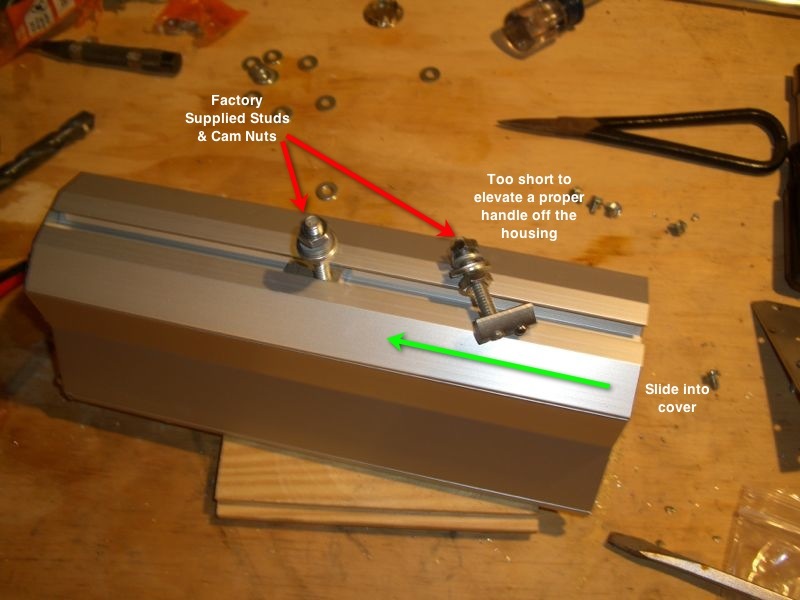

Now we can install the handle. The image here shows the two factory supplied mounting studs with their cam nuts. One is shown slid into the housing cover:

Step #16:

PrevNext
Infrared Paint Remover: V2

In order to elevate our handle off the housing, the studs will have to be a bit longer. I cut two studs from 1/4-20 threaded rod. Each stud is 3.25". Shown here, the old and the new. Both are shown threaded into the cam nuts, with some washers and nuts thrown in for good measure.

Step #17:

PrevNext
Infrared Paint Remover: V2

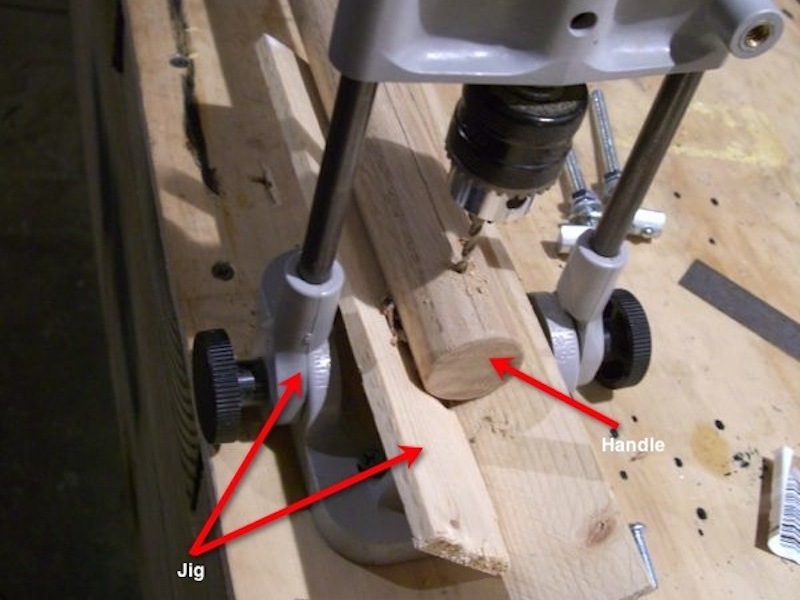

The handle is a piece of oak dowel, 1.25" diameter. It is cut to 10" long to match the length of the housing. Here the holes are drilled in the handle using a jig (sorry, no drillpress). A small bit is used first for accuracy, then a bit slightly larger than the studs is run through.

Step #18:

PrevNext
Infrared Paint Remover: V2

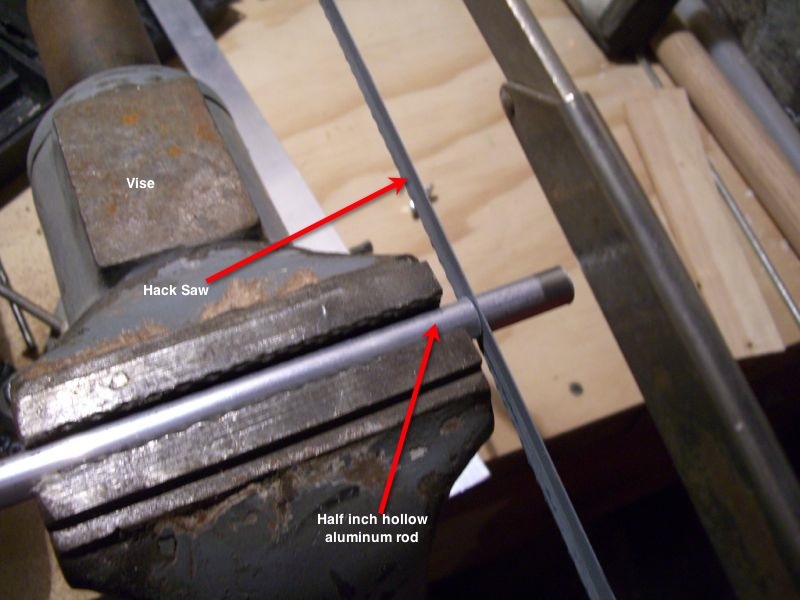

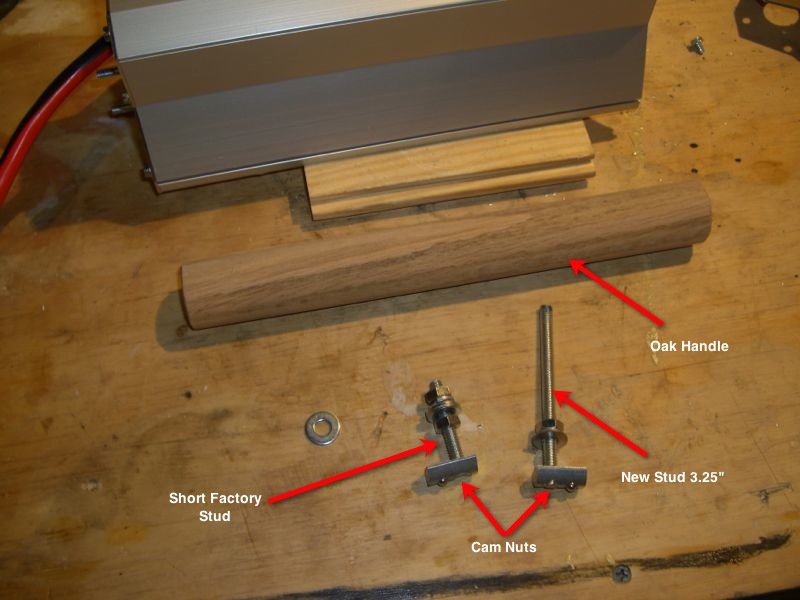

  • Next, sleeves are made to cover the studs. They are made from half-inch hollow aluminum rod, from (where else?) Home Depot. Each is 1.25" long. A quick swipe with sandpaper removes any burrs from the hack saw.
  • While these sleeves are not strictly required, they add a certain je ne sais quoi to the finished unit, and will hide the only visible vestige of DIY.

Step #19:

PrevNext
Infrared Paint Remover: V2Infrared Paint Remover: V2Infrared Paint Remover: V2Infrared Paint Remover: V2

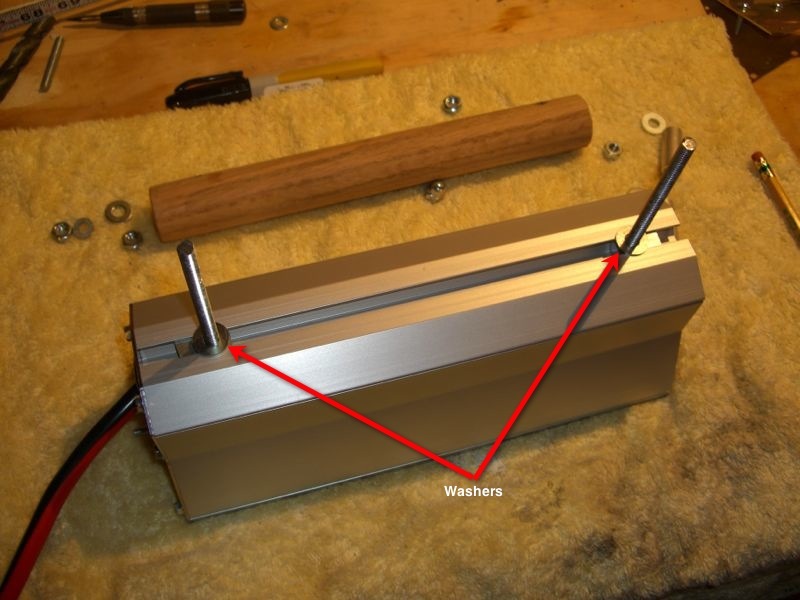

Here are the steps for installing the handle hardware: Washer on stud, sleeve, washer...

Step #20:

PrevNext
Infrared Paint Remover: V2Infrared Paint Remover: V2Infrared Paint Remover: V2

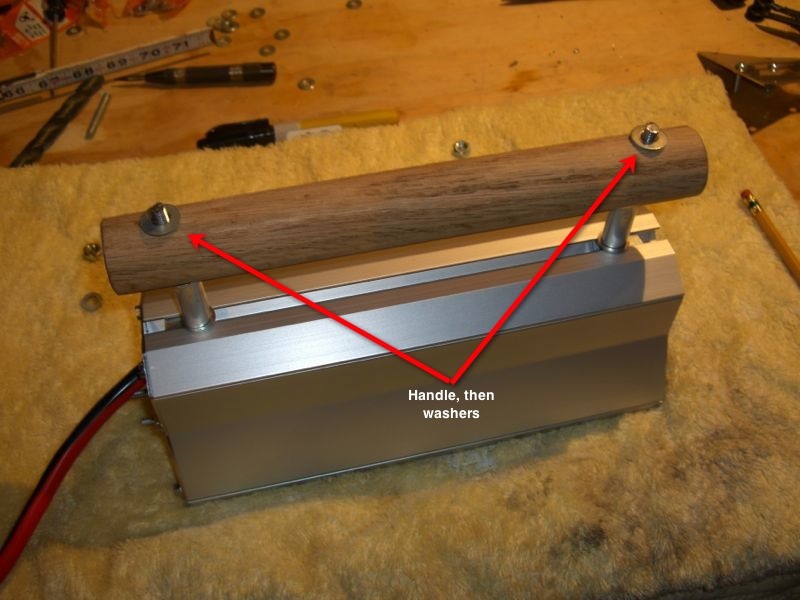

Then place the handle, and hardware.

Step #21:

PrevNext
Infrared Paint Remover: V2
  • At this point I can mention that the lengths of the studs and sleeves were selected to keep my knuckles from touching the housing when I hold the unit. It's very important that your knuckles don't touch, as the unit gets very hot. If you have super huge hands you may want to test clearance first. Make the studs longer if required.
  • The tradeoff is that with longer studs it can be more tiring holding the unit in certain orientations. The remaining end-plate is now attached.

Step #22:

PrevNext
Infrared Paint Remover: V2Infrared Paint Remover: V2Infrared Paint Remover: V2

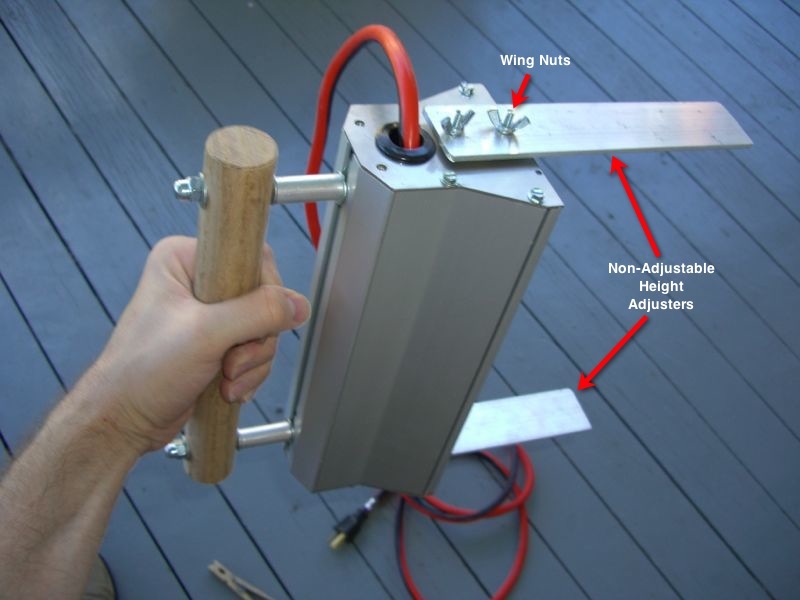

  • All that's left is the height adjusters. These I made from some 1.25" aluminum left over from the previous IPR. I cut each to 7.5 inches long, and drilled holes to match the studs on the end-plates. I rounded over all edges and corners so that these would not scratch any wood work.
  • These are affixed with wing nuts so that they can be removed if necessary. Like the previous IPR, the height is not adjustable. I never found any need to adjust height once the proper height is found. The first image shows the adjusters and wing nuts.
  • To be honest, I prefer not to install them. They do add weight (even if just a little). I suggest that you do keep them installed, though; they have the very important benefit of ensuring that the unit is not accidentally placed face-down on a surface where it would more than likely start a fire if left unattended.
  • With the "adjusters" in place, and more specifically with these adjusters on the ends of the unit, it is almost impossible to place the unit any way except on its side. (If you really try hard you can balance it face down on its adjusters, but if you round off the ends of the adjusters even this will be impossible.)

Conclusion

The ceramic element requires about ten minutes to heat up. When fully heated, the red logo on the element turns black. This unit throws off some serious infrared radiation. Paint sees this thing coming and jumps off the wood in fear. I will add action photos soon.

Caution: the housing gets too hot to touch. Do not touch it when operating the IPR.

There some improvements to be made and concerns about the design. These are things I am working on:

1. The unit gets very hot, and while I have no concerns about the housing and element, I am concerned about the cord wiring. This is why, as I mentioned above, I intend to sheath the cord wires in Teflon tubing. Inspection of the unit after operation has not shown any melted wire insulation, but hours on this IPR are still low. I do not know what the temperature rating of the extension cord wire is. More study required. Also, after each use, I open the cover and inspect the wires. If you make one of these, you should too.

2. The infrared output of this thing is phenomenal. The 1000-watt element I am using almost seems too much. The height adjusters could actually be longer than 7.5 inches. Using a variac, I will lower the operating power and see if performance suffers. I suspect I might go with a 750-watt element from the supplier rather than the 1000-watt I am using now.

Update: The 750W element works fine. I suggest for an all purpose unit, you use the 750W element.

3. The unit weighs 3 lbs. 8 oz. This is a little too much. A weight-loss reduction program might include replacing the steel end-plates with home-cut aluminum ones. A series of holes could also be drilled in the housing itself. Enough holes would lessen the weight and perhaps vent the heat better.

Use: These devices are mainly intended for restorers of old houses and others seeking to remove many layers of old paint from wood surfaces. The thicker and older the paint, the better it works. IPRs will not work as well on fresh paint. Hold the unit over a spot until the paint begins to bubble and lift. Do not leave long enough for the paint to scorch or smoke. You want the least time possible. When the paint has separated from the surface, scrape it off.

Time over spot and Height Adjuster length:

It's very difficult to assign a standard time/riser length to the IPR unit. The reason is that different paint sites require different lengths and/or time held over a spot. The factors that weigh into this are:

  • Age of the paint.
  • Composition of the paint.
  • Thickness of the paint.
  • Color of the paint (white reflects more energy back)
  • Type of wood underneath (density)
  • Moisture of wood underneath

All of the above, and maybe a few I've forgotten, affect the "personality" of the job. You'll find some paints lift very quickly at 7 inches, while others need closer spacing for the same time frame. You may find that some paints just don't lift at all (like calcimine and milk paints). The rule of thumb is to use the most distance that your patience can deal with. The slower you heat the paint, the more the chance the wood beneath has to absorb the heat and release. Also the longer you take (slower you heat), the less chance lead vapor releases, because the paint gets a chance to release before being heated too hot. Due to the differing nature of old paints, one of three things will always have to be variable: the power of the IPR, the length of the risers, or the time you hold it over a spot. I tend to vary the distance so that the job at hand takes about 20 - 30 seconds to bubble a good patch. I have taken to simply removing the risers and letting the nature of the job dictate where I hold the unit, but you can also have 2 or 3 sets of risers on hand. I'd say one set at 5" and one at 4". A three-inch set may be ok, but you want to be careful when you start getting that close. I have seen some paints that would catch fire before they let go; if you need to get 3" close, then the IPR might not be suited to the job. Of course, if you built your unit with only one job in mind, you can cut the risers to suit that job's needs. One of the benefits of a "top heavy" unit is that nobody can accidentally leave it unattended face-down while on, thus starting a fire. If your unit can sit happily, it is a good idea to make a metal "tray" for it to sit in, so as not to burn whatever you put it on. Even after powering it off, it needs a good 10 minutes before it can safely be aimed at something.

I hope you enjoyed my second experiment.


Comments

  1. Dave says:

    Hi. Yes I wrote version 1 as well. That unit used quartz tubes. There are several concerns with what you propose. You can judge whether they are important to you. One is safety; if the unit stands by itself, you will most certainly be tempted to set it down. If you absentmindedly leave it sitting for more than 30 seconds or so you risk fire and/or scorching the wood. Even when turned off the unit needs minutes to cool to safe levels. A unit that cannot be left in a dangerous position wont be. Another concern is the legs , especially 4 points, scratching the wood. The legs get real hot, and it’s easy to make “snail tracks” or brandings in the wood if you’re not careful. I typically remove the risers altogether when working so that nothing touches the wood. Another concern is that you typically should use this device vertically rather than horizontally. When vertical the device absorbs far less of its own heat. I worry a bit about horizontal use for extended periods. Fortunately, unless you’re doing a floor, most work can be positioned vertical. Lastly you mentioned weight. Every ounce really does count when holding this thing vertically. If you can be mindful of these risks and warnings, then you can perhaps experiment with some trestle style legs. –Dave

  2. casey.gonzales1@gmail.com says:

    Can you tell me how you built the infrared tool that you built first. I am interested in infrared not ceramic.
    Thanks,

  3. MIchelle says:

    HI Dave — In case you check in, I would also love if you could post or PM the first set of instructions. I found and bookmarked them on the Ocean Manor page like about 2 years ago or something close. And I bought the stuff I need to make V1, incl the infrared heater (the ceramic is – I think – going to be too heavy for me to use effectively). Just never have had the time to put it together, but with spring approaching it is now a top priority to get my exterior painting done, and I have a garage covered with lead paint that I cannot get anyone to touch for a reasonable price. And now them website seems to be gone. Along with it, V.1 of the stripper. I recall that you discussed in pretty good detail how to deal with removing and re-seating and wiring the infrared tubes Sure could use that guidance again. If you get this, and can shoot me an e-mail, I’d be ever so grateful to you for your help. — Michelle mpaninop@gmail.com

  4. Oh look! Some amazing person made a pdf of your previous instruction and posted it. http://www.broadwaydistrict.org/paint%20Remover%20Instructions%201.pdf QUICK run to print it off before it ends up vanishing. And God Bless the Interwebz! And thanks again for working this all out and posting it for the rest of us. A great public service.

  5. Christine says:

    Have you done any temperature testing of the hot paint? Is it over 1000 degrees F? Is it safe and doesn’t vaporize the lead in most pre-1978 paint? Would you tool pass any electrical safety testing? Beware.

  6. Andre says:

    I think small piece of aerogel insulating blanket past reflector will protect aluminum body from heat. I know about IPR for a long time, however good it can be for a home owner, the liability starting a fire keeps me from using it. I worked on many old houses and sometimes siding insulation can be 100 y.o. dry hemp ropes , paper dry as gunpowder etc.
    I will try to make IPR just to use on contured window frames/sash. For the siding, nothing works faster ( but requires skill) then Paintshaver. With powerful 2HP vacuum, Most of the residue is sucked into it . There are some tricks to make wood unclog after sanding , then
    it is ready for primer. Either way sanding wood after removal is a must because it removes
    all residue from top of the surface.

  7. Andre says:

    OK I forgot to tell you folks that I saw some aerogel pieces on ebay…. It is not cheap though but the latest technology in insulation

  8. Andre says:

    I also found those ceramic elements on ALIBABA and they are way cheaper there but unfortunately, sold in bulk…

  9. Andre says:

    Hi there! I just received the body part and it seems that heat conducts through the body of the unit by the contact with the reflector. Two rows of assimetrical holes into the aluminum part that skirts the reflector will decrease surface of heat transfer from the reflector. There is a heat reducing channel on outside edge of the aluminum skirt but there is still significant contact with aluminum frame. Perhaps strip of silicon tape will help? Any ideas???
    I also think that instead of aluminum tubes hiding the handle’s bolts rigid plastic tubes to be used further adding to insulation of handle from the body. Most of the weight comes from aluminum sliding lid part. But I would not drill any holes into those parts hence they isolate electric circuits. Also I would insert thin aluminum foil under the holes made in the skirt to prevent any posibility of moisture getting in there. Aerogel should arrive tomorrow and I am excited to finish the product coming weekend. Any ideas on thin insulating tape that resistant to high temps?
    Regards
    Andre

  10. Robert says:

    My house was built in 1960 and is mostly brick with the exception of the trim work and wooden garage doors. The garage doors and all the trim around the garage doors are in especially ugly shape. The paint in these areas looks like alligator scales that are very thick and too hard to try and scrape. I ordered all of suggested parts for this Infrared Paint Remover V2 [went with the 1000 watt version] and I put everything together as outlined in the steps. I can say that the Infrared Paint Remover V2 does work because i was able to successfully heat and strip the paint on one of the vertical posts that surrounds the garage door. The post was successfully stripped of its alligator scales all the way down to the wood and then primed for paint. With that said, I must also say that the amount of time and effort it takes to do this is way beyond what I was hoping. It took me over six hours to do the one post that is roughly eight inches wide and eight feet tall. I received many eye rolls from my wife, but I was determined to have the new tool work. And although I can say that it did work, I must also say that I have admitted defeat and I will be replacing the garage doors and trim work that have these alligator scales with new trim pieces and new garage doors.

  11. Christine says:

    Handy people: Yikes! You are taking risks with yourself, your homes, kids, and neighbors. Dave, why are you not warning them about high heat, wiring and wood fires, lead-paint toxicity, and other serious safety issues? You publish world-wide and have a disclaimer, but it’s scary that you encourage experiments with dangerous materials. I know I’m a skeptic and am discouraging good ole American ingenuity, but please folks know what your are messing with. Read up on lead-safe work practices at http://www.epa.gov/lead .

    1. Dave says:

      I work from the assumption that people are neither stupid nor ignorant.

  12. mnphysicist says:

    Christine, I’d be very leery of using surface temperature as a means of determining lead emissions or not when using radiant heat transfer. There are a multitude of ways to get errant surface temperature readings (more so with quartz tube emitters than ceramic) and there may be many other factors at play when it comes to lead emissions. One thing that’s interesting about this mod is its vertical orientation, in that it should generate a convective plume which would should keep the lead emissions further from the operator than its predecessor. Bottom line, It would be interesting to look at various paint profiles and related lead emissions for both quartz and ceramic infrared heating methods…. but I’m not quite sure how to take something like that on without significant lab gear.

    Andre, Kapton tape is super thin and much more heat resistant than Silicon tape… but its so thin if might not be all that helpful for where you are trying to use it. What you might try is some silica mesh (McMaster sells it in small quantities), or if you have enough space some Kaowool.

  13. Bob W says:

    After looking into the brand-name IPR’s and both DIY ones, I am very glad to have gone the route of this particular version. Mor Electric typically has an expected lead time of 4- to 6-weeks on the parts purchase, but they were able to expedite my purchase once contacted. Still having concern for my knuckles (I’m pretty accident-prone), I fixed a flat trowel in place instead of the hardwood handle. This gave me a flat surface to lay the unit down, has had no heat transfer to the trowel plate, and the handle grip is molded for a hand. I’m also hoping the rectangular trowel will make mounting onto a stand more stable. Here is the unit:

    It has performed very well so far, cleaning 3-4 layers of paint from my garage, though the clapboard cleans more easily than molding. Thanks for the great plans!

    1. Bob W says:

      Another attempt to post the image location…
      [IMG]http://i42.tinypic.com/2wgdnqp.jpg[/IMG]

  14. John Hufana says:

    Can someone post the actual part numbers at MOR Electric? I found many different models of the 750w 120v ceramic emitters and am unsure which one to get.

    1. Doppledunkle says:

      I bought FTE-750-120-TW-L6-WH-0 120V 750W

      1. John Hufana says:

        Thank you! Can you also give me the part numbers for the rest of the parts needed from the electric company? There are so many model numbers for each and every part I am unsure which ones to order.

  15. Dave says:

    How hot will the paint get? Depends not on how hot the emitter is. It depends on how fast the work at hand disperses energy, which depends on other things….

    The surface of the emitter can be well over 1000 degrees. If you place the emitter on the paint surface, the surface will be 1000 degrees. If you place the emitter 1 mm from the surface, the surface will be very close to 1000 degrees. As you back off even more, the surface temperature drops, and ultimately depends on:

    -species of substrate wood
    -its moisture content
    -the type of paint on the wood
    -the thickness of the paint layers on the wood
    -the color of the paint
    -the length of time the IPR is held in one place
    -and the distance the IPR is held from the surface.

    This makes it difficult to judge exactly what temperature the IPR will bring the paint and substrate to. This is because each job is different. The ultimate temperature achieved is based on those factors, especially the last two.

    So one guy who holds his IPR 3″ from the paint for 20 seconds, is going to have a different temperature than another guy who holds the IPR 4″ from the paint for 20 seconds, assuming the same paint surface.

    The best way to approach this is to simply heat the paint just long enough to scrape it off. Hold the IPR just close enough so that it will soften in 10-15 seconds, no closer. Most paints soften between 200-400 degrees. I remove paint from hardware by boiling the hardware. In that case, we know the paint was 225 degrees.

    There is some information on the web that lead paint releases lead vapor at some magic temperature, usually stated around 725 degrees. I have never found the source of this number. And I’ve looked a long time. I believe based on something I read long ago that lead sublimates as the temperature rises, that it does so proportionately over the entire range of temperature, and not all at some magic temperature. I could be wrong, but I think it’s best to be cautious at all times.

    Dave (OP)

  16. Dave says:

    To Robert:
    You are correct in your findings that the IPR is not a tool that suited for speed. It is more suited for quality of work. The IPR is best used for intricate or relief detail that needs to be reclaimed, small jobs where quality is important, or historic applications where conservation of the material is paramount. I doubt I’d use it on anything larger than a door. The IPR is not the best tool for large flat surfaces such as the side of a house. In such a case, sufficient results can be obtained with other methods. I used my IPR to do the trim of my house, but found it more cost/time effective to replace the clap boards. I have seen people use the IPR for typical peeling paint on houses, this is not necessary! Paint only need be removed if it: 1. is so thick it hides historic detail. 2. So thick (alligatored) that it will never be a good base for successive coats. 3. The original work was varnished/shellacked and it is desired to return to that finish.

  17. Deirdre says:

    I simply bought a small quartz heater from Walmart (24.95 on clearance) and it works like a charm. Unfortunately, it has a small width of heating efficacy (6-8 inches at a time), but it does cover two clapboards on the vertical at a time. My house was built in the early 1900s and has a variety of paint applications on it, running from seriously alligatored four layers of paint to bare wood, and while I work at thirty second intervals to be sure I don’t scorch the bare parts, the job it does is truly remarkable. I admit, it would go a lot faster if I bought the professionally constructed setup,, but I’m on an extremely tight budget this year, and as a woman doing her own projects I appreciate the light weight of the heater I have. .

  18. Infrared paint stripping is by far the gentlest process on the wood; particularly beneficial for listed properties where the preservation of the original, old wood is desired. The infrared heat penetrate into the wood and actually pulls up the normal resins deep in the wood to revitalize it. It also pulls up the paint or varnish which has sunk into the wood allowing them to be scraped off more thoroughly. The heat removes extra moisture deep in the wood and neutralises mildew and fungus. Yet, the lower temperature of 200-300pC minimises the risk of scorching or the wood catching fire.

  19. Lawrence says:

    How does this ceramic diy compare in performance with the commercial model? I see people zipping along in the videos with the name brand but some of the reviews here are down right painful.

    If it under performs is it because the heating width is not large enough? Or people are not using the right pull scrapers.

    The dimensions of the Alex-F AI Extrusion Assembly 1 (MOR Electric item code IRALX10001)
    are 10″ x 3.88″ whereas the name brand is 14.5 ” x 7 1/8″ x 6 2/8 Heating area: 12″ x 5″

    Can this ceramic version heat an area 12″ X 5″?

    I need to strip partially strip a large church over time so I am interested in seeing this discussion continue. I’d also like to see some ideas on making a DIY hands free articulating arm. Looks easy enough but more heads are better than one.

  20. james daniello says:

    i built this unit and had problems with the cord melting where it touched the aluminum housing. I fixed it by using “rescue tape”, a silicone stretchy tape. i simply wrapped the end of cord that went into the wire clamp with about a quarter inch in thickness with the silicone tape and clamped it in. works like a charm. you can find the tape at most hardware stores these days.
