Barebones Arduino on a breadboard

Computers & Mobile Technology
Barebones Arduino on a breadboard

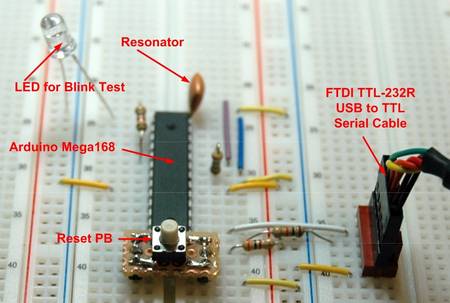

Here is a truly barebones Arduino setup. Just the Arduino chip and a few support parts. This has to be close to the simplest and lowest cost way to play with microcontrollers. The only special parts are the resonator and the Mega168 programmed with the Arduino boot loader. Everything else you should already have as an electronics hobbyist.

Ardunio Breadboard – [Via] Link
