AVR controlled clock

AVR controlled clock

Avr Clock1
Daqq made a really simple The AVR controlled clock, source and schematic included –

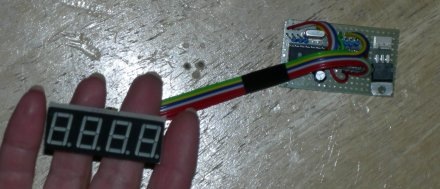

A friend of mine needed a clock into his amplifier as an extra function. So I made him one. It consists only of one AVR processor and one BQ-M512RD (or compatible, with common anodes) LED display.

Daqqs homepage – [via] Link.
