Getting Started with Breadboarding

Using a solderless breadboard is an important skill for hobby electronics. Nick Raymond explained the ins and outs of breadboards and how to use them at several sessions at Maker Faire NYC.

World Maker Faire NY Video Highlights

MAKE: Live Stage

Live Robot Bugs! Biomimicry in Research and Development

See All Videos

Maker Interviews

NASA Chief Technologist Mason Peck

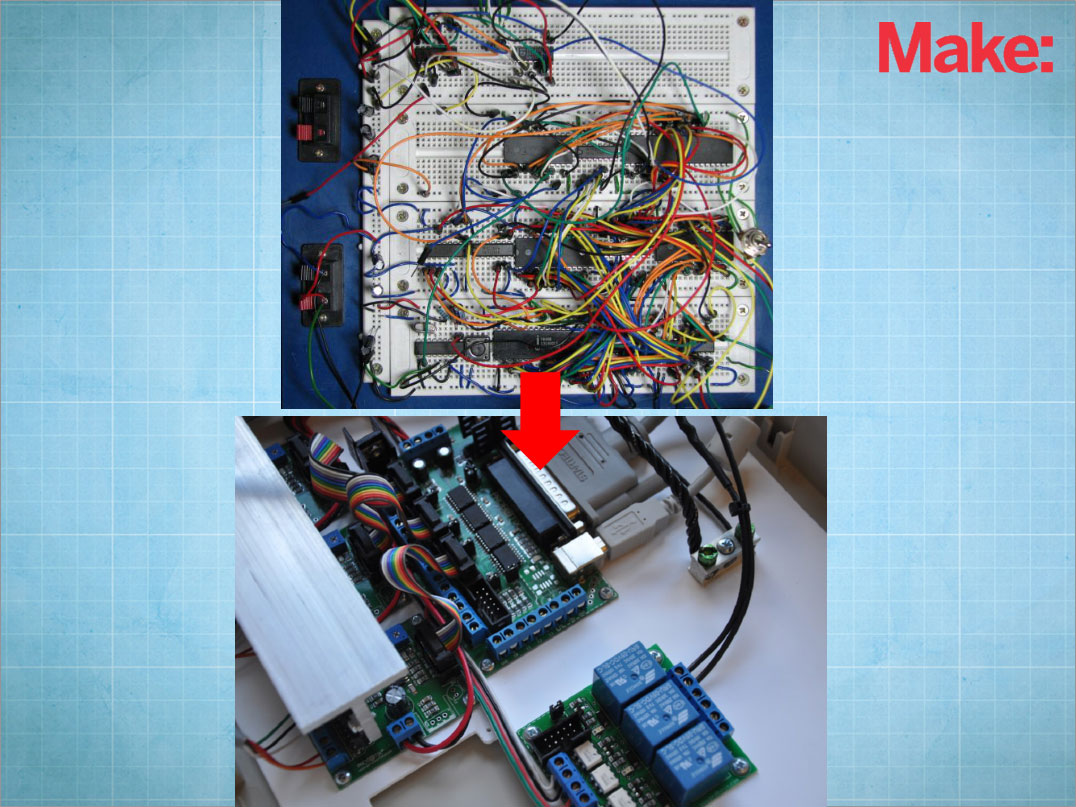

“What’s the point of breadboarding?” people ask. As Nick explains, even if you’ve learned to solder, it’s easy to make a mistake. Breadboarding lets you work out the bugs while you are developing your circuit.

Nick speaks from experience. Four years ago, his mechanical engineering background didn’t prepare him for working with electronics. Since joining MAKE, he’s had to learn. He assembled his own CNC machine, along with an electronics kit necessary to control the motors.

“Breadboarding is essential for me,” says Nick.

In this presentation, Nick explores common questions about breadboarding:

  • Why use a breadboard at all?

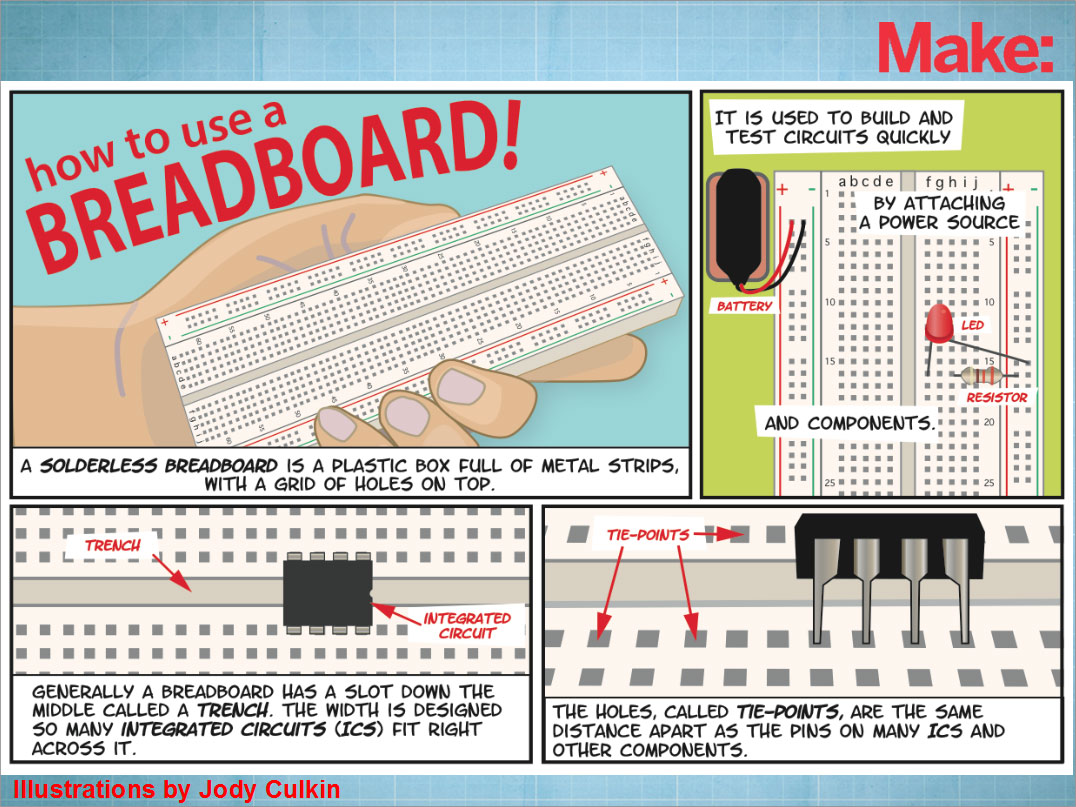

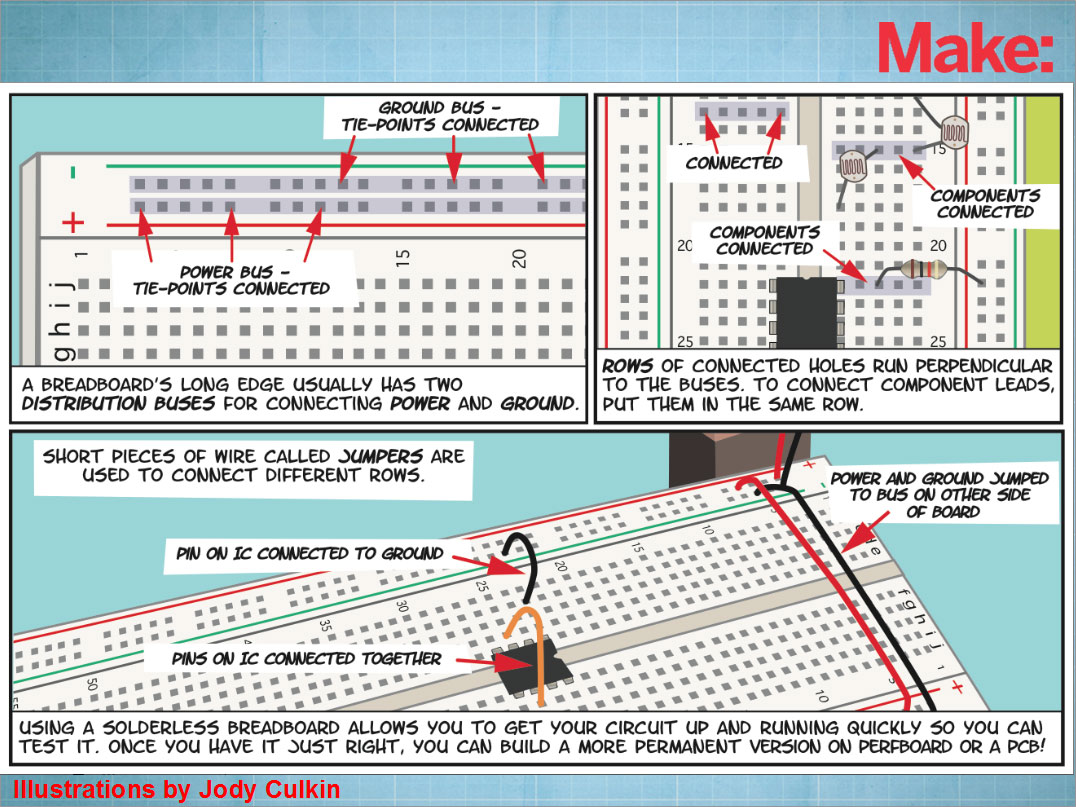

  • How does it work?

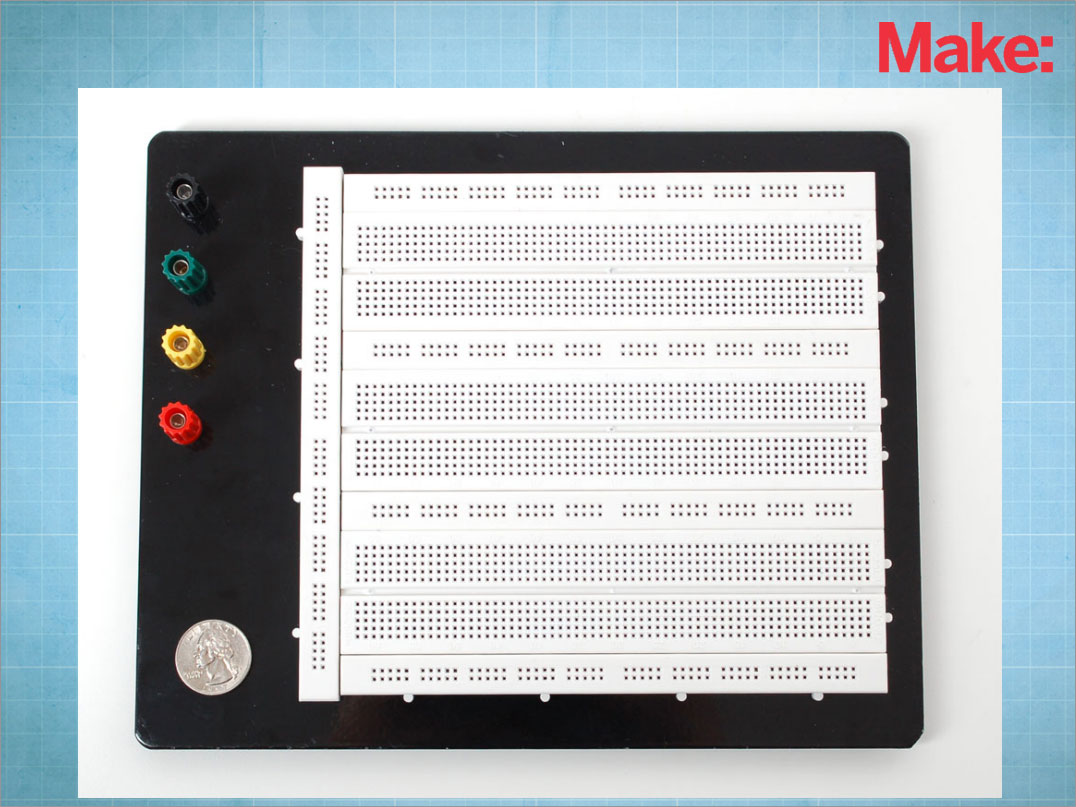

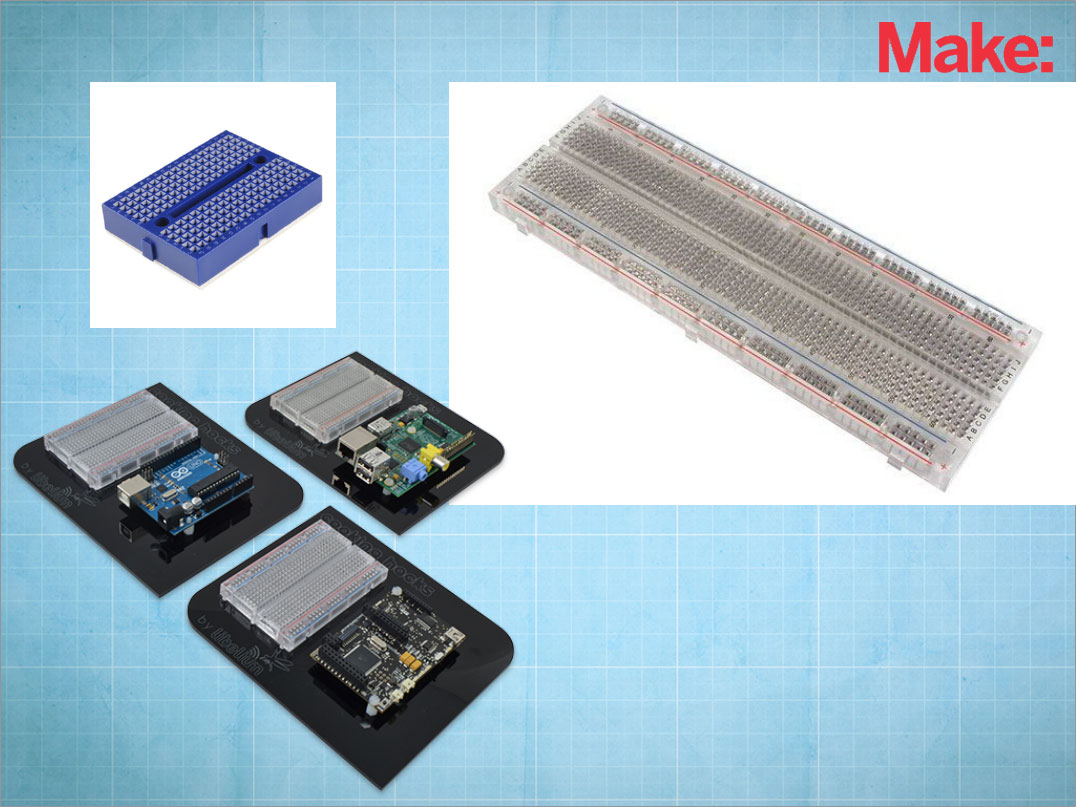

  • What types of breadboards should I use for my project?

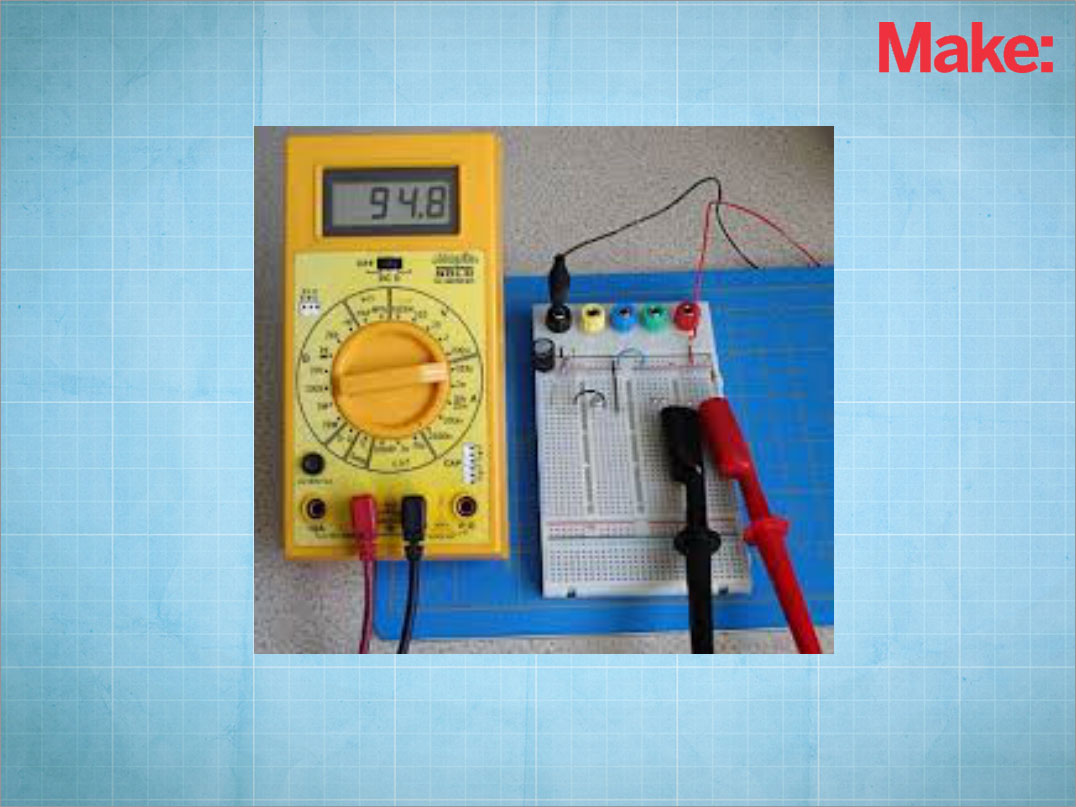

  • Why won’t my circuit work?

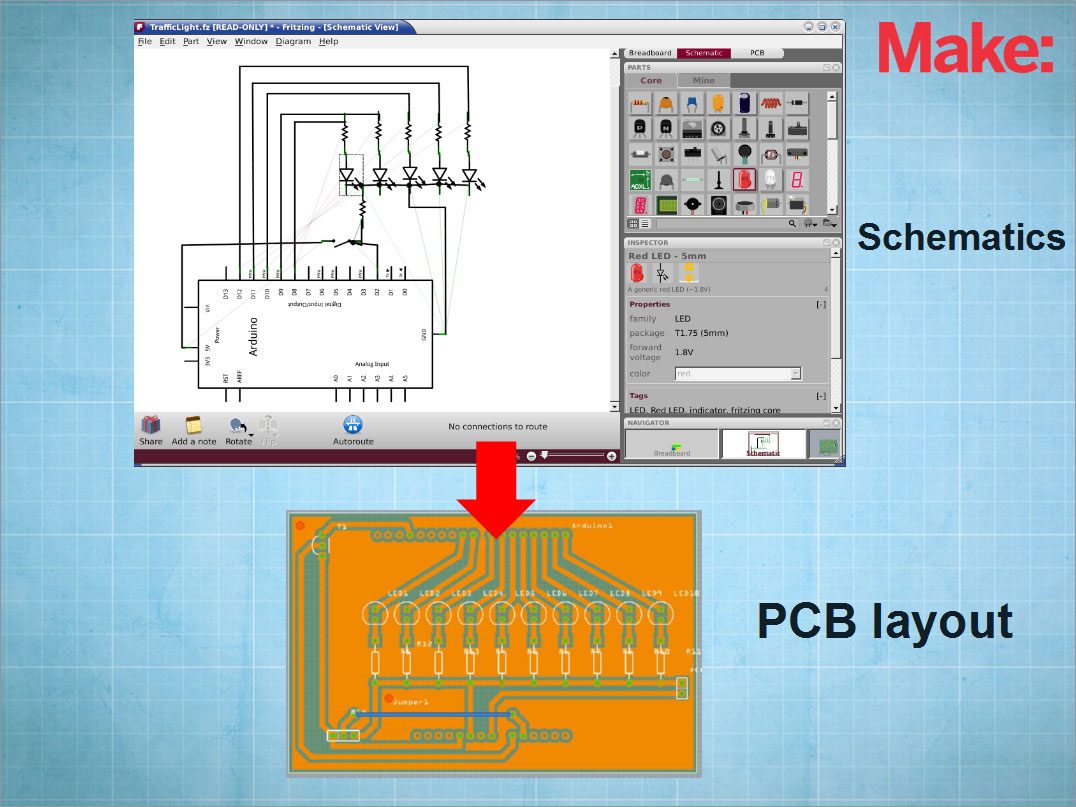

  • What do I do next?

Breadboards aren’t very expensive, and they’ll save you time and avoid frustration in the long run. So check it out, and get yourself started on a basic skill that will serve you well for years to come.

(Nick presented this talk a few times during Maker Faire weekend. I selected the version of the video I felt best represented his content.)
