One of the coolest materials for making is a moldable plastic called Polycaprolactone, or PCL. You may have seen it marketed as Shapelock, PolyMorph, InstaMorph, ThermoMorph, or other brand names.
PCL is typically sold in small round pellets. The pearly white material melts at about 140 degrees Fahrenheit (60 degrees Celsius), and becomes transparent and pliable as Silly Putty. Then you can shape it however you like, and it can be re-melted and reformed many times. Once hardened, PCL can be cut, drilled, filed, or worked in any number of ways. This makes it perfect for making prototypes, performing repairs, and making all sorts of customized stuff.
While I’ve seen many cool things made with PCL, some of the most creative techniques I’ve heard of were developed by a friend of mine, Gareth from Let’s Make Robots. Gareth developed a series of workshop posts showing how to form useful shapes, add color and more neat stuff. Another Let’s Make Robots member, Russell, posted a tip on how to make sheets and brackets from PCL.
The links for all of these posts are below, so go check them out and give PCL a try.

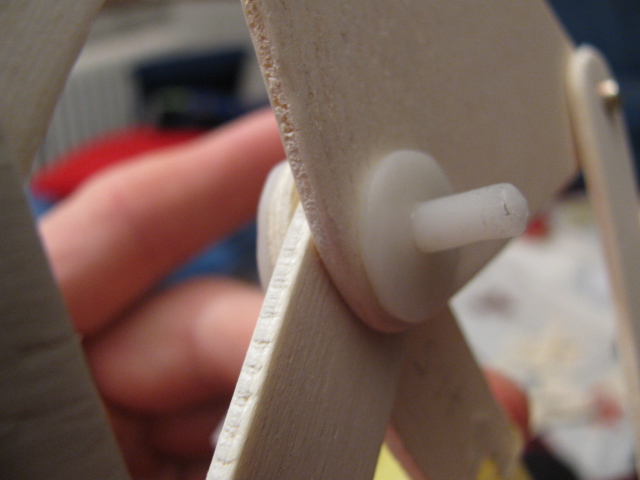

- Workshop 1: How to Make “Trivots ©”

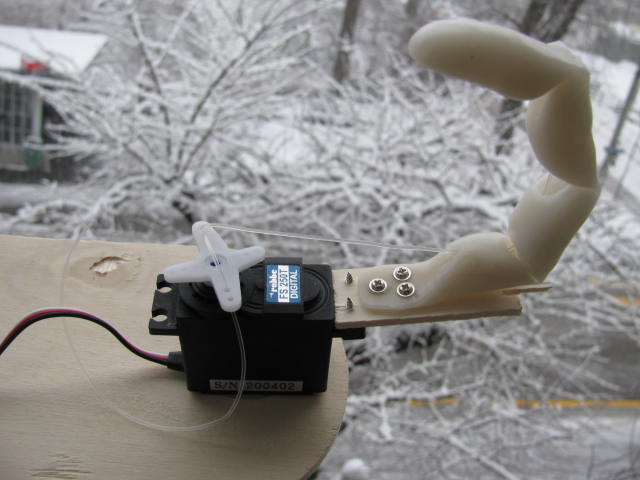

- Workshop 2: How to Make a Servo Controlled Finger or Scorpion Tail

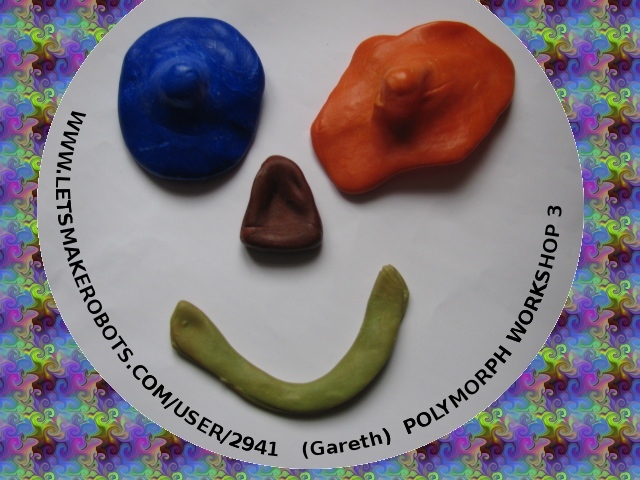

- Workshop 3: Poly-Pixle Colour System

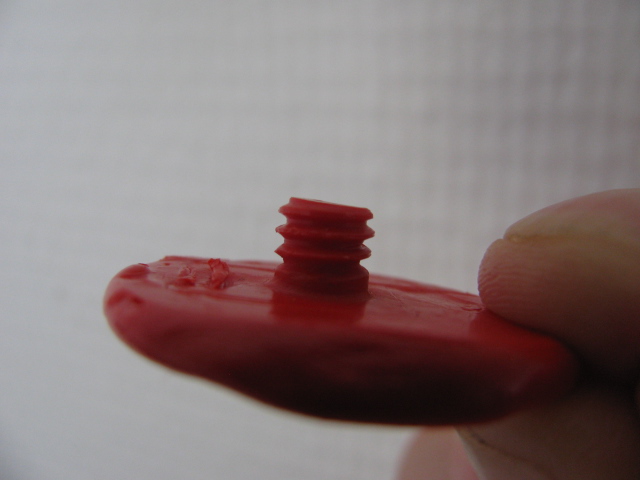

- Workshop 4: How to Make a PolyMorph Screw

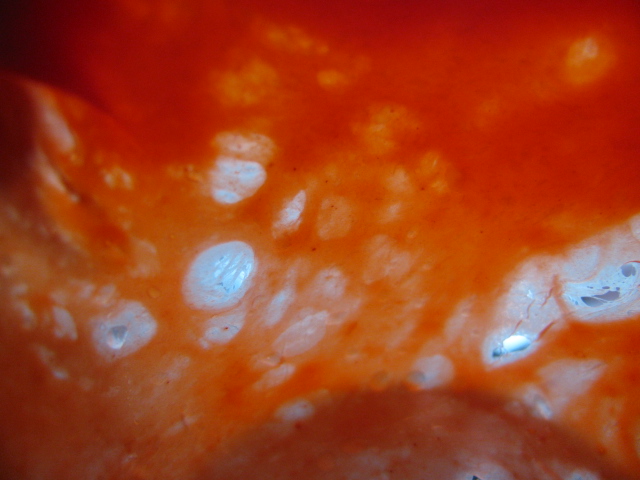

- Workshop 5: Skinning Techniques

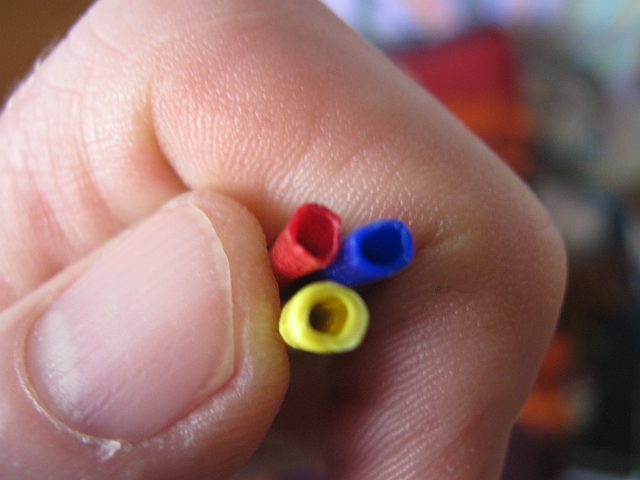

- Workshop 6: PolyMorph Extrusion Techniques

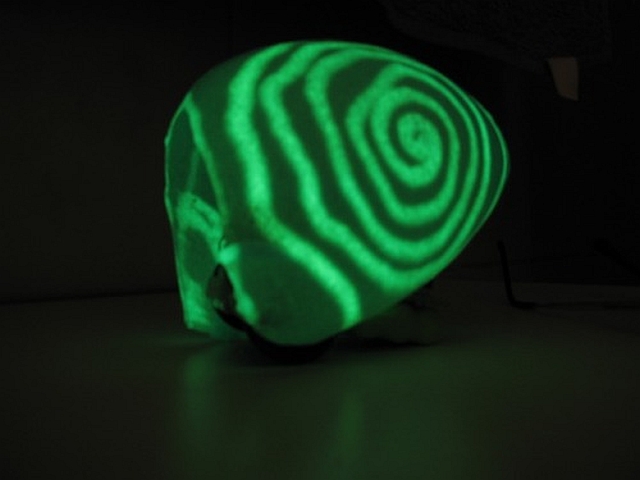

- Workshop 7: How to “Glow” Your Own PolyMorph

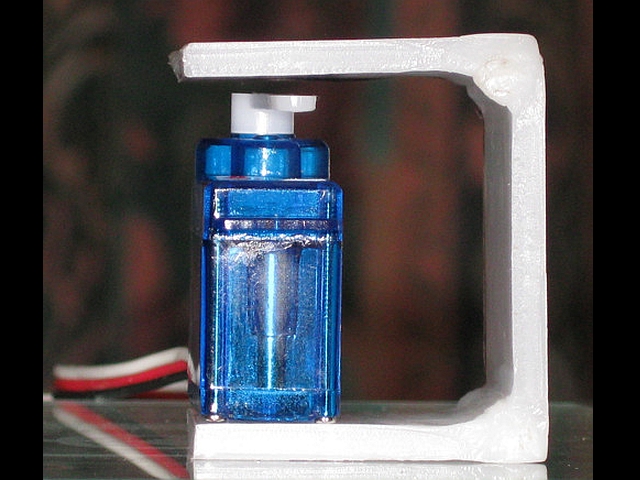

- Making PolyMorph Sheets and Brackets
10 thoughts on “Playing with PCL”
Comments are closed.
[…] Se tu lo sai come ShapeLock, PolyMorph, InstaMorph, ThermoMorph o qualche altro marchio, policaprolattone (PCL) è una straordinaria bassa temperatura di fusione di plastica che è grande per i prototipi, le riparazioni, e facendo grandi cose. […]
A warning (copied from my comment last time PCL was mentioned on this blog): PCL starts out very strong, but over a period of years becomes very brittle. I made many items with PCL (the Friendly Plastic brand) in the late 80′s and early 90′s, and all of those items subjected to ANY force crumbled to bits within 10 years or so. Similarly, the unused pellets no longer melt completely anymore, and when they harden, they’re a brittle, flaky mess.
So, this stuff is great for prototyping and having fun, but don’t make anything you want to last or is stressed for a long time.
Thanks for the comment. Nothing I’ve made from PCL is that old yet, so I haven’t run into any issues. I did have one set of robot parts melt on me when I left them in a hot garage during the hottest part of the summer.
PCL is certainly not perfect, but it is great stuff for a lot of uses.
I see on Amaco’s own site (they make Friendly Plastic brand PCL), the issue of shelf life is addressed, at least vaguely. Check under “Purchasing, Storing and Reconditioning”.
http://www.amaco.com/2009/friendly-plastic-bible-tools-and-materials/
Back in the day, I tried everything to “recondition” the pellets (the tub of pellets was very expensive), and nothing worked, including what is recommended by the article.
They only address the problem of working with old plastic. They don’t mention that your finished creations are vulnerable as well. I had done elaborately sculpted animations for my 3D zoetropes, and ten years later all I had to show for all my work was armature wire and plastic rubble. I hope all the PLA I’m printing these days fares better.
I made a plaster mold of my robots face and then pushed some melted PLC into the mold.
I worked very well and I only replaced it after I made a 3d print that was the exact shape I wanted. Still have the PLC head and it never got brittle.
It is amazing stuff.
