First shield pics for Arduino MEGA

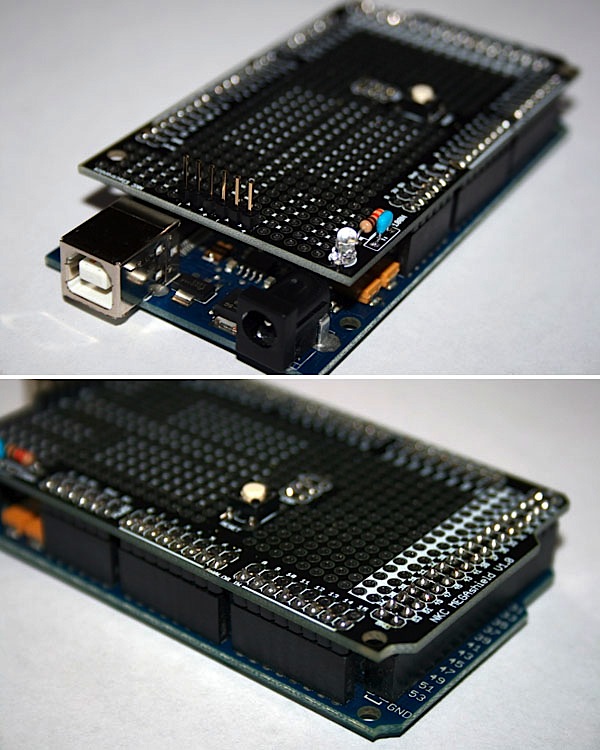

Hack a Day reports on what appears to be the first shield created specifically for the forthcoming Arduino MEGA board. NKC’s prototyping shield is of course predictably longer and uhhh … mega-er. The comment thread over at NKC points out that their shield only has 2 holes for standoffs – apparently the massive connecting pin-count offers sufficient stability on its own.
