When you’re working with projects involving vacuum pumps, vacuum gauges will show you the pressure in the chamber being evacuated. There are many different approaches to measuring the pressure in a vacuum, but we’ll focus on one of the most common, called the Bourdon pressure gauge.

At the heart of the Bourdon gauge is a C-shaped flattened tube that is connected to the chamber being evacuated. The removal of the air in the tube causes the tube to bend slightly, which moves a mechanism attached to the end of the tube. This mechanism amplifies and converts the bending motion into rotation, moving the pressure dial to indicate the pressure in the tube.


7 thoughts on “Skill Builder: How to Use Vacuum Gauges

  1. StacyFTackett says:

    Some New Features with makezine….. Go To Next Page

  2. rkbren says:

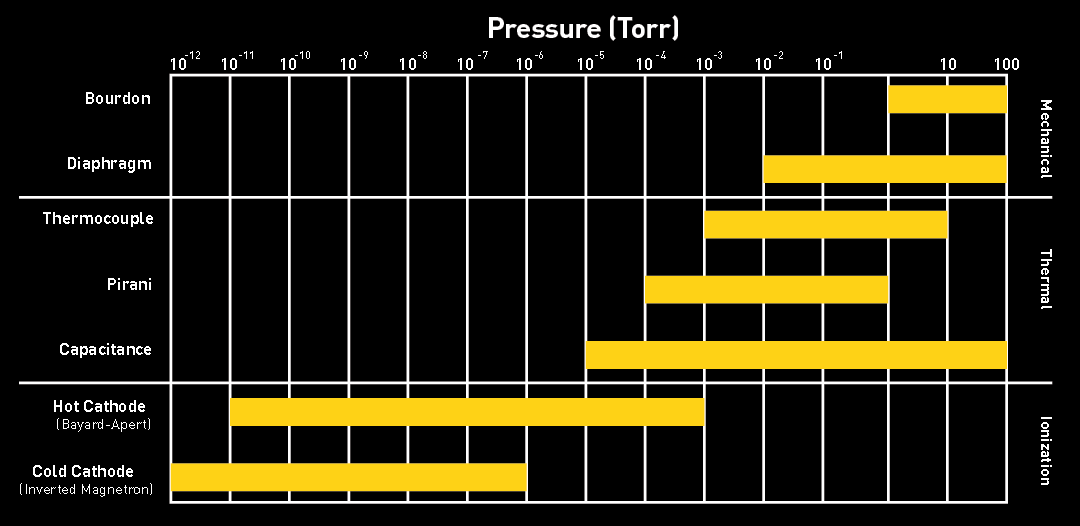

    Although the chart is informative, it’s misleading. The main problem is that the “zero” value is placed incorrectly on the chart. If you absolutely needed to put a zero on the chart (which really isn’t needed), it should go to the extreme left of the x-axis. This is because a true zero (absolute) vacuum, which doesn’t exist, is lower than ANY other value shown on the chart.
